SPE-15-8-008/B/EZ
Page 9 of 25
MA.510.C.W.C108151.G108151
3.6 Efficiency

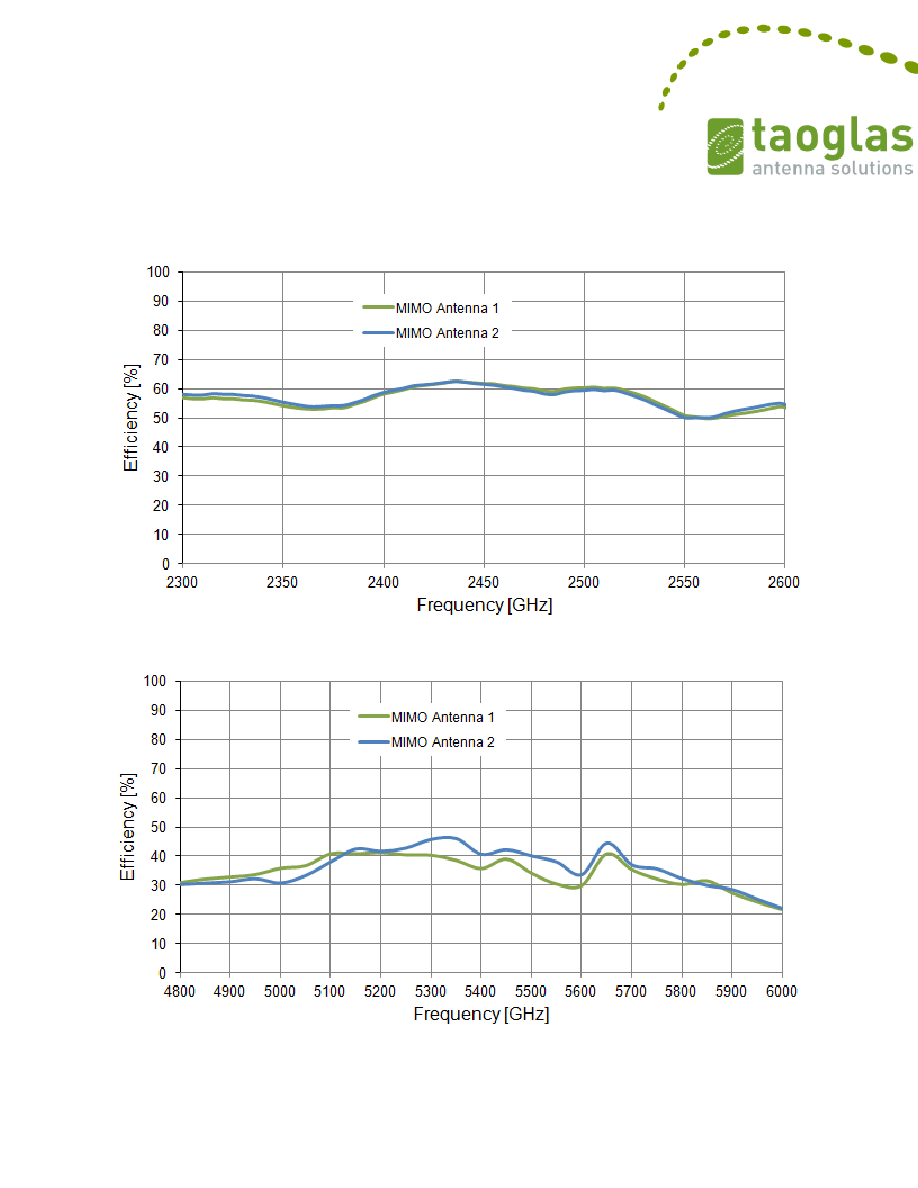

Figure 11. Efficiency of the Hercules MA510 MIMO antenna from 2300 MHz to 2600 MHz.
Figure 12. Efficiency of the Hercules MA510 MIMO antenna from 4800 MHz to 6000 MHz.
