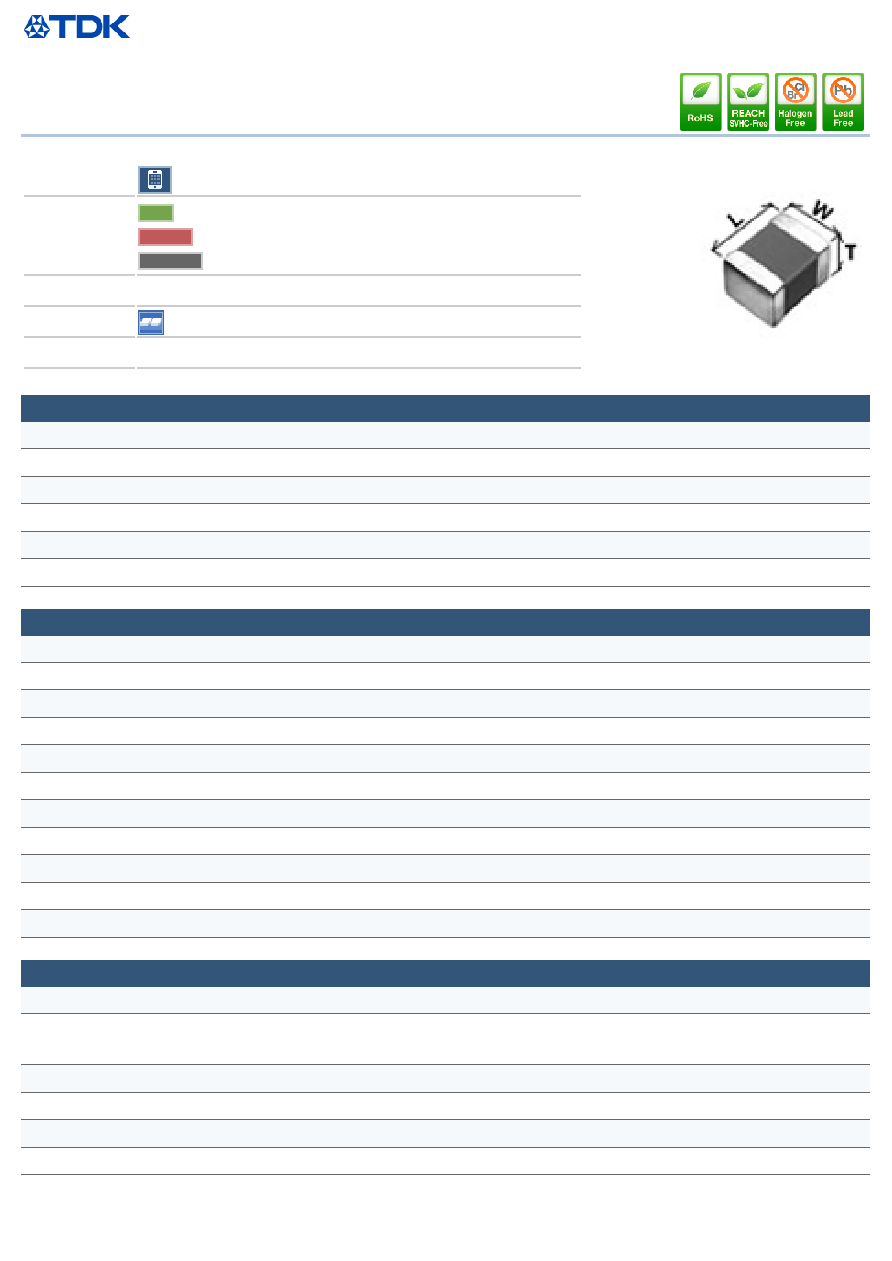

Inductors (Coils)

1 of 3

Creation Date : August 29, 2017 (GMT)

MLZ2012M3R3HT000

Applications

Commercial Grade

Feature

Shield

Magnetic Shield

Multilayer

Multilayer

Ferrite Core

Ferrite Core

Series | Type

MLZ

Status

Production

Brand

TDK

Size

Length(L)

2.00mm ±0.20mm

Width(W)

1.25mm ±0.20mm

Thickness(T)

1.25mm ±0.20mm

Recommended Land Pattern (A)

0.80mm Nom.

Recommended Land Pattern (B)

1.00mm Nom.

Recommended Land Pattern (C)

1.20mm Nom.

Electrical Characteristics

Inductance

3.3μH ±20% at 2MHz

Rated Current (L Change) [Typ.]

Rated Current (L Change) [Max.]

350mA (50% Down)

Rated Current (Temperature Rise) [Typ.]

500mA (20°C Rise)

Rated Current (Temperature Rise) [Max.]

350mA (20°C Rise)

DC Resistance [Typ.]

200mΩ

DC Resistance [Max.]

260mΩ

Self Resonant Frequency [Min.]

Self Resonant Frequency [Typ.]

Q [Min.]

Q [Typ.]

Other

Operating Temp. Range (Including Self-Temp. Rise)

-55 to 125°C

Soldering Method

Reflow

Iron Soldering

AEC-Q200

No

Packing

Blister (Plastic)Taping [180mm Reel]

Package Quantity

2000pcs

Weight

0.014g
