Unit：mm

CM09 Series

http://www.ddknet.co.jp

◎ Specifications and/or dimensions in this catalog are subject to change without notice.

　 Please varify the latest specifications with our drawings.

4

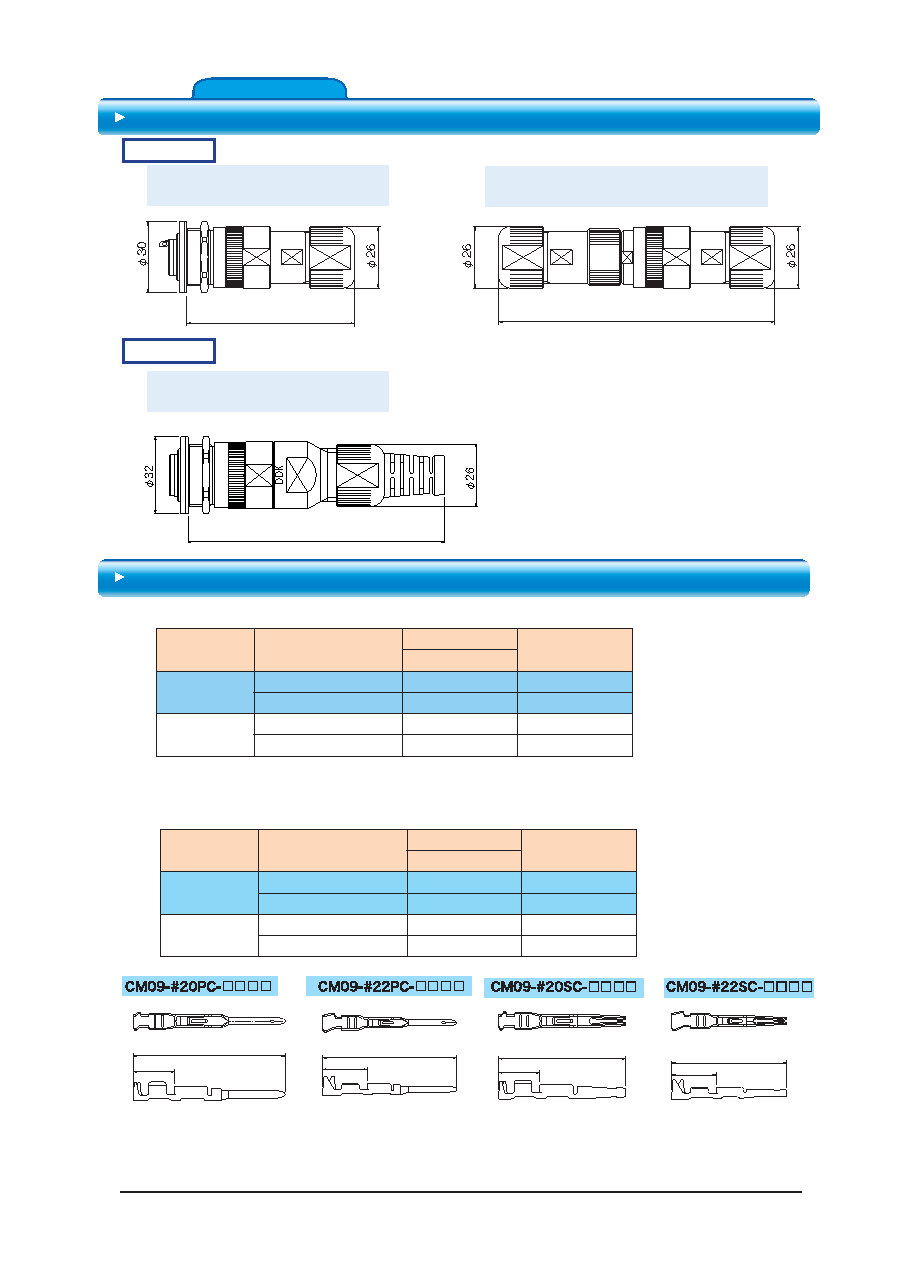

○Dimensions, Mated

○Contacts

CM09-CR25 □

CM09-P25 □

CM09-R25 □

CM09-P25 □

(116.5)

(71)

(116.5)

(71)

Item

Applicable Contact

P/N (100pcs/1 bag)

Applicable Wire

　Hand Tool

　　 P/N

Conductor Size

Pin Contact

CM09-#20PC-100

20 〜 22AWG

357J-50481T

CM09-#22PC-100

24 〜 28AWG

357J-50482T

Socket Contact

CM09-#20SC-100

20 〜 22AWG

357J-50481T

CM09-#22SC-100

24 〜 28AWG

357J-50482T

Reel Contacts for Semi-Automatic Tool

Item

Applicable Contact

P/N (10000pcs/1 reel)

Applicable Wire

Semi-Automatic

　Tool P/N

Conductor Size

Pin Contact

CM09-#20PC-10000

20 〜 22AWG

AP-A50457T

CM09-#22PC-10000

24 〜 28AWG

AP-A50458T

Socket Contact

CM09-#20SC-10000

20 〜 22AWG

AP-A50457T

CM09-#22SC-10000

24 〜 28AWG

AP-A50458T

■ Contact Removal Tool

Ｐ / Ｎ：357J-51374T

17.3

5.6

15.6

6

20.7

5.6

18.2

6

Note. The rose contact becomes the sales goods by 100/one bag.

Loose Contact

25.3

17.7

5以下（パネル厚）

M261.5ねじ

(107)

※寸法の文字の大きさは

 自由に調整して下さい。

CM09-R32 □

CM09-P32 □

25Pin

32Pin
