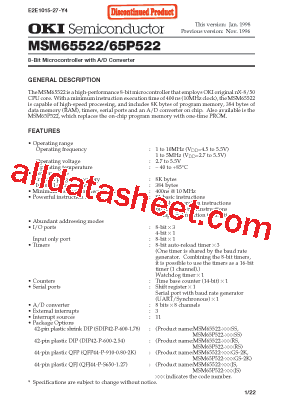

GENERAL DESCRIPTION

The MSM65522 is a high-performance 8-bit microcontroller that employs OKI original nX-8/50 CPU core. With a minimum instruction execution time of 400 ns (10MHz clock), the MSM65522 is capable of high-speed processing, and includes 8K bytes of program memory, 384 bytes of data memory (RAM), timers, serial ports and an A/D converter on chip. Also available is the MSM65P522, which replaces the on-chip program memory with one-time PROM.

FEATURES

• Operating range

Operating frequency : 1 to 10MHz (VDD=4.5 to 5.5V)

                            1 to 5MHz (VDD=2.7 to 5.5V)

Operating voltage : 2.7 to 5.5V

Operating temperature : – 40 to +85°C

• Memory space

Internal program memory : 8K bytes

Internal data memory : 384 bytes

• Minimum instruction execution time : 400ns @ 10 MHz

• Powerful instruction set : 81 basic instructions

                                  8/16-bit operation instructions

                                   Bit manipulation instructions

                                  Compound function instructions

• Abundant addressing modes

• I/O ports : 8-bit x 3

4-bit x 1

Input only port : 8-bit x 1

• Timers : 8-bit auto-reload timer x 3(One timer is shared by the baud rate generator. Combining the 8-bit timers, it is possible to use the timers as a 16-bit timer (1 channel).)

                    Watchdog timer x 1

• Counters : Time base counter (14-bit) x 1

• Serial ports : Shift register x 1

Serial port with baud rate generator

(UART/Synchronous) x 1

• A/D converter : 8 bits x 8 channels

• External interrupts : 3

• Interrupt sources : 11

• Package Options

42-pin plastic shrink DIP (SDIP42-P-600-1.78) : (Product name:MSM65522-xxxSS, MSM65P522-xxxSS)

42-pin plastic DIP (DIP42-P-600-2.54) : (Product name:MSM65522-xxxRS, MSM65P522-xxxRS)

44-pin plastic QFP (QFP44-P-910-0.80-2K) : (Product name:MSM65522-xxxGS-2K, MSM65P522-xxxGS-2K)

44-pin plastic QFJ (QFJ44-P-S650-1.27) : (Product name:MSM65522-xxxJS, MSM65P522-xxxJS)
