PDTC123TMB

All information provided in this document is subject to legal disclaimers.

© NXP B.V. 2012. All rights reserved.

Product data sheet

Rev. 1 — 12 June 2012

3 of 11

NXP Semiconductors

PDTC123TMB

NPN resistor-equipped transistor; R1 = 2.2 k

Ω, R2 = open

5.

Limiting values

[1]

Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

6.

Thermal characteristics

[1]

Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.

Table 5.

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol

Parameter

Conditions

Min

Max

Unit

collector-base voltage

open emitter

-

50

V

collector-emitter voltage

open base

-

50

V

emitter-base voltage

open collector

-

5

V

output current

-

100

mA

peak collector current

-

100

mA

total power dissipation

[1]

-

250

mW

junction temperature

-

150

°C

ambient temperature

-65

150

°C

storage temperature

-65

150

°C

FR4 PCB, standard footprint

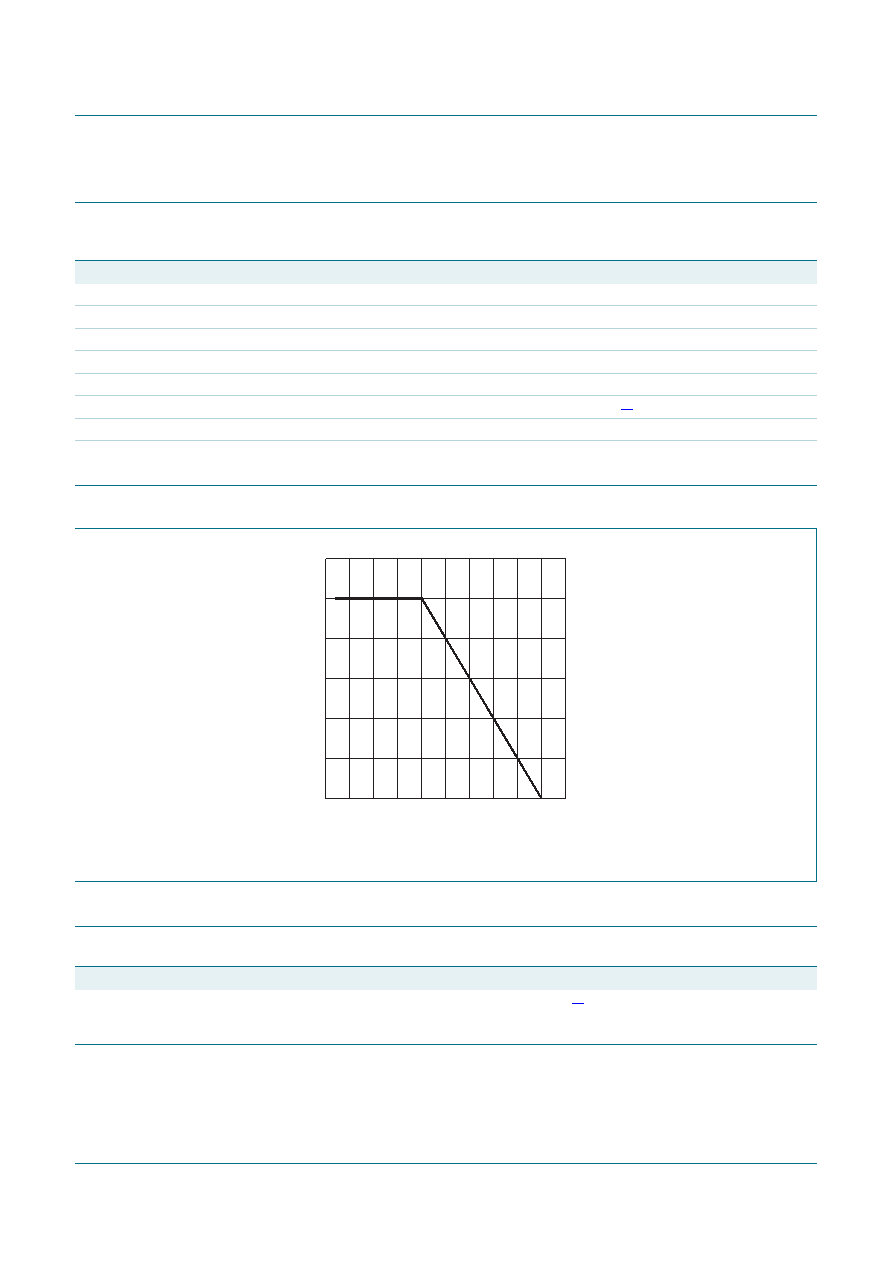

Fig 2.

Power derating curve for DFN1006B-3 (SOT883B)

-75

175

125

25

75

-25

006aad009

100

200

300

(mW)

0

Table 6.

Thermal characteristics

Symbol

Parameter

Conditions

Min

Typ

Max

Unit

thermal resistance

from junction to

ambient

in free air

[1]

-

-

500

K/W
