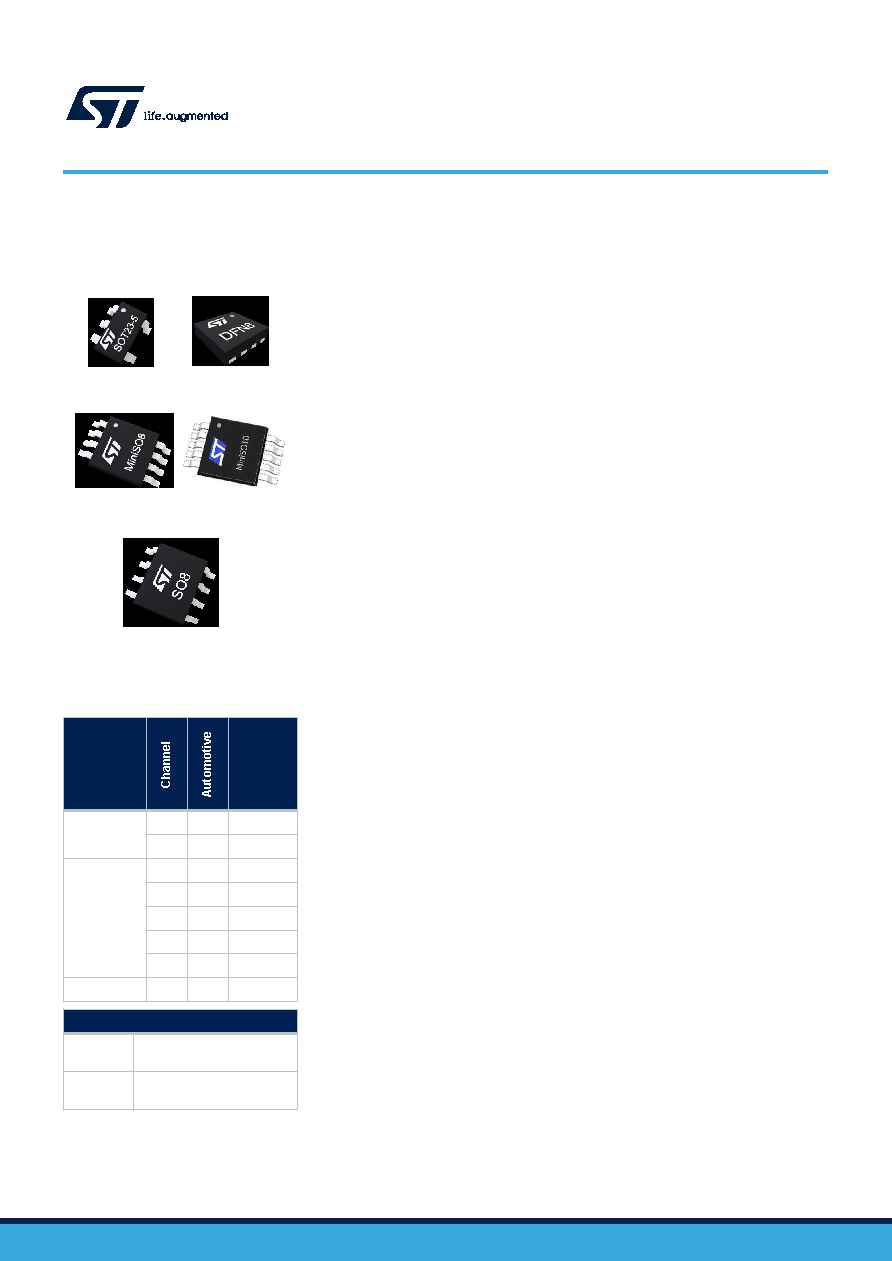

1 / 40 page  TSV7721 SOT23 -5 TSV7722 DFN8 2x2 mm TSV7722 MiniSO8 TSV7723 MiniSO10 TSV7722 SO8 Features • Gain bandwidth product 22 MHz, unity gain stable • High accuracy input offset voltage: 50 µV typ., 200 µV max. • Low input bias current: 2 pA typ. • Low input voltage noise density: 7 nV/√Hz • Wide supply voltage range: 1.8 V to 5.5 V • Output rail-to-rail • Input common-mode range includes low rail • Automotive grade and shutdown versions available • Benefits: – High frequency signal conditioning – Optimized accuracy for low-side current sensing Applications • Low-side current measurement • Photodiode amplifiers • Automotive current measurement and sensor signal conditioning • Strain gauges signal conditioning Description The TSV7721, TSV7722 and TSV7723 are single and dual 22 MHz-bandwidth unity- gain-stable amplifiers. The input offset voltage of 200 µV max. (50 µV typ.) at room temperature, optimized for common-mode close to ground makes the TSV772x ideal for low-side current measurements. The TSV772x can operate from 1.8 V to 5.5 V single supply and it is fully specified on a load of 47 pF, therefore allowing easy usage as A/D converters input buffer. The TSV772x series offers rail-to-rail output, excellent speed/power consumption ratio, and 22 MHz gain bandwidth product, while consuming just 1.7 mA at 5 V. The devices also feature an ultra-low input bias current that enables connection to photodiodes and other sensors where current is the key value to be measured. These features make the TSV772x series ideal for high-accuracy, high-bandwidth sensor interfaces. Maturity status link Package TSV7721 1 SOT23-5 1 • SOT23-5 TSV7722 2 DFN8 2 MiniSO8 2 SO8 2 • MiniSO8 2 • SO8 TSV7723 2 MiniSO10 Related products TSV792 Rail-to-rail amplifier with higher GBW 50 MHz TSB7192 22 MHz amplifier with 36 V supply voltage High bandwidth (22 MHz) low offset (200 μV) 5 V op amp TSV7721, TSV7722, TSV7723 Datasheet DS13614 - Rev 3 - May 2021 For further information contact your local STMicroelectronics sales office. www.st.com |
