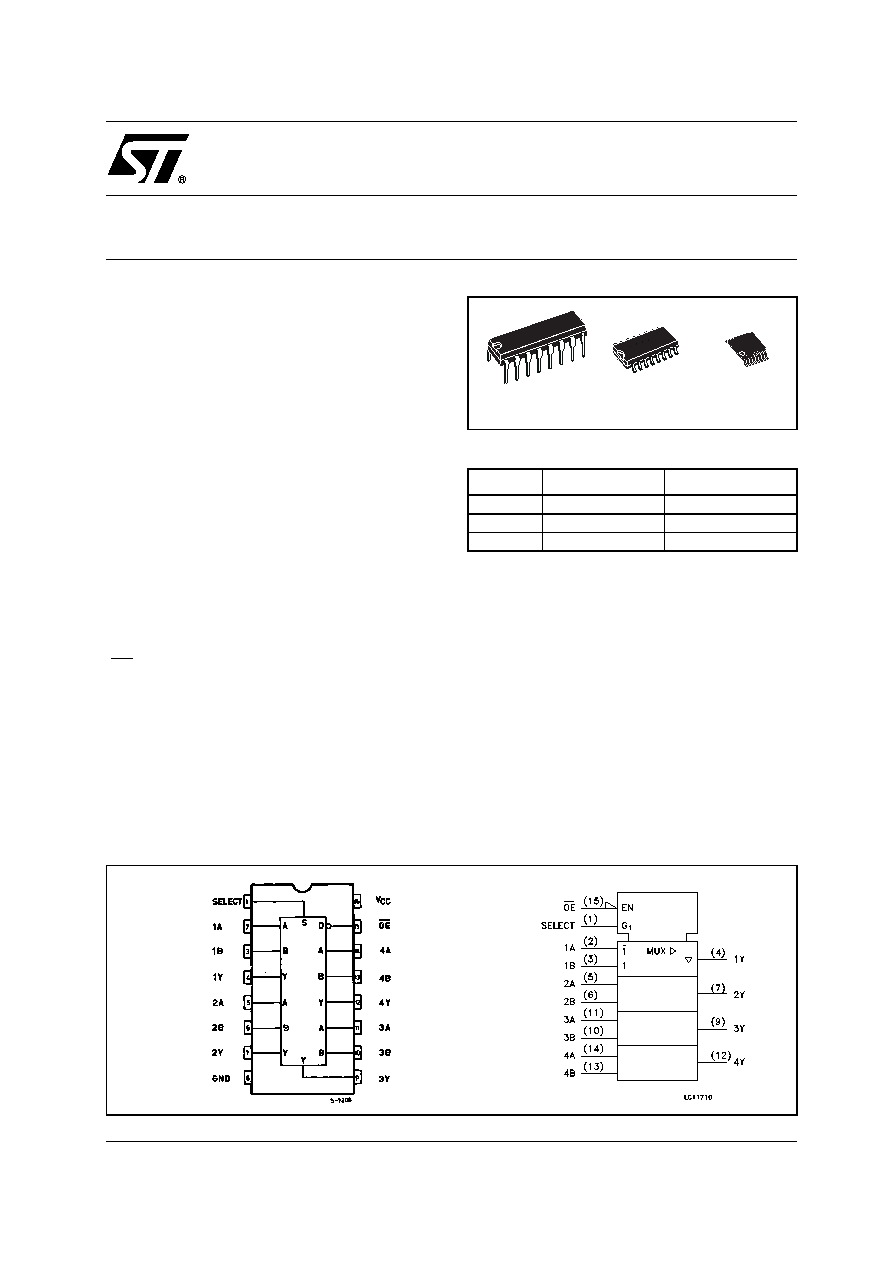

background image
1/11
August 2001
s
HIGH SPEED :
tPD = 11 ns (TYP.) at VCC = 6V
s
LOW POWER DISSIPATION:
ICC =4µA(MAX.) at TA=25°C
s
HIGH NOISE IMMUNITY:
VNIH = VNIL = 28 % VCC (MIN.)
s
SYMMETRICAL OUTPUT IMPEDANCE:
|IOH| = IOL = 6mA (MIN)
s
BALANCED PROPAGATION DELAYS:
tPLH ≅ tPHL
s
WIDE OPERATING VOLTAGE RANGE:
VCC (OPR) = 2V to 6V
s
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 257
DESCRIPTION
The M74HC257 is an high speed CMOS QUAD 2
CHANNEL MULTIPLEXER (3-STATE) fabricated
with silicon gate C2MOS technology.
This IC is composed of an independent 2-channel
multiplexer with common SELECT and ENABLE
(OE) input.
The M74HC257 is a non-inverting multiplexer.
When the ENABLE input is held "High", outputs of
the IC become in a High-Impedance state. If
SELECT input is held low, "A" data is selected,
when SELECT is high , "B" data is chosen.
All inputs are equipped with protection circuits
against static discharge and transient excess
voltage.
M74HC257
QUAD 2 CHANNEL MULTIPLEXER (3-STATE)
PIN CONNECTION AND IEC LOGIC SYMBOLS
ORDER CODES
PACKAGE
TUBE
T & R
DIP
M74HC257B1R
SOP
M74HC257M1R
M74HC257RM13TR
TSSOP
M74HC257TTR
TSSOP
DIP
SOP
