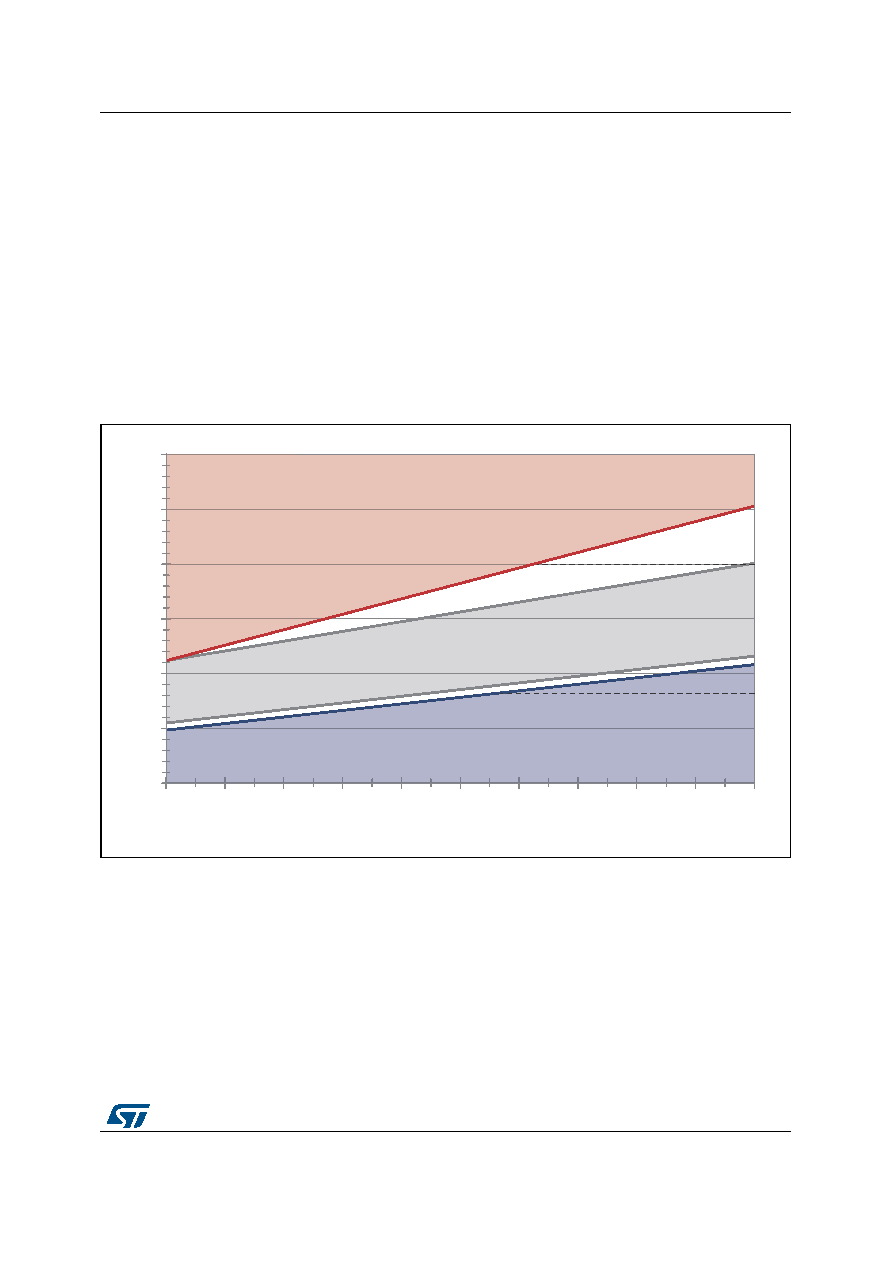

85 / 137 page  DocID022691 Rev 7 85/137 STM32F373xx Electrical characteristics 114 Note: I/O pins are powered from VDD voltage except pins which can be used as SDADC inputs: - The PB2, PB10 and PE7 to PE15 I/O pins are powered from VDDSD12. - PB14 to PB15 and PD8 to PD15 I/O pins are powered from VDDSD3. All I/O pin ground is internally connected to VSS. VDD mentioned in the Table 52 represents power voltage for a given I/O pin (VDD or VDDSD12 or VDDSD3). All I/Os are CMOS and TTL compliant (no software configuration required). Their characteristics cover more than the strict CMOS-technology or TTL parameters. The coverage of these requirements is shown in Figure 17 for standard I/Os, and in Figure 18 for 5 V tolerant I/Os. The following curves are design simulation results, not tested in production. Figure 17. TC and TTa I/O input characteristics - CMOS port |
|
