P9242-R3/RB Datasheet
© 2019 Integrated Device Technology, Inc.
12
May 17, 2019

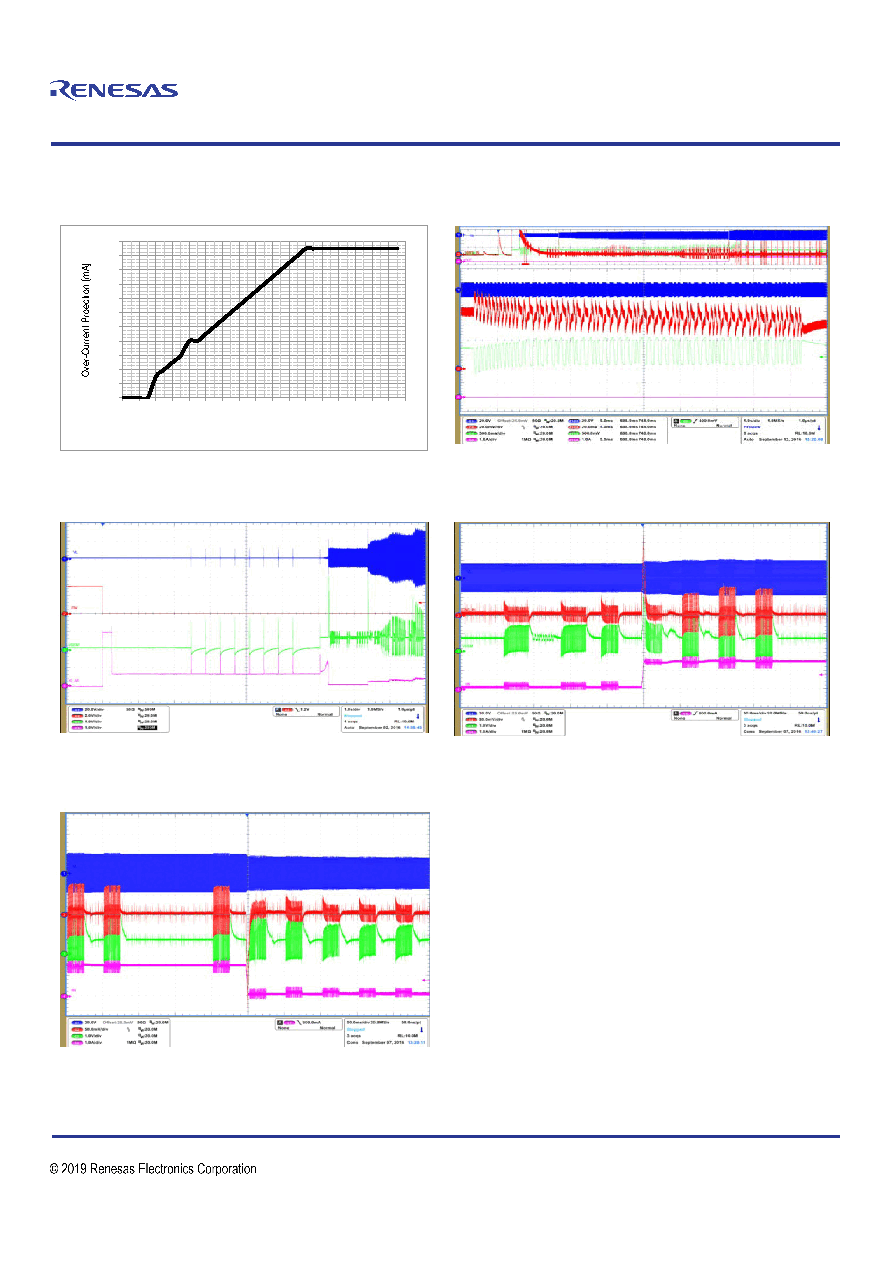

Figure 8. Over-Current Limit vs. VILIM
Figure 9. Voltage and Current Signal for
Demodulation
Figure 10. Enable Startup
Figure 11. Communication Packet during
RX Load Step from 0 to 1.3A
Figure 12. Communication Packet during RX
Load Step from 1.3A to 0
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8 3 3.2 3.4
VILIM[V]
