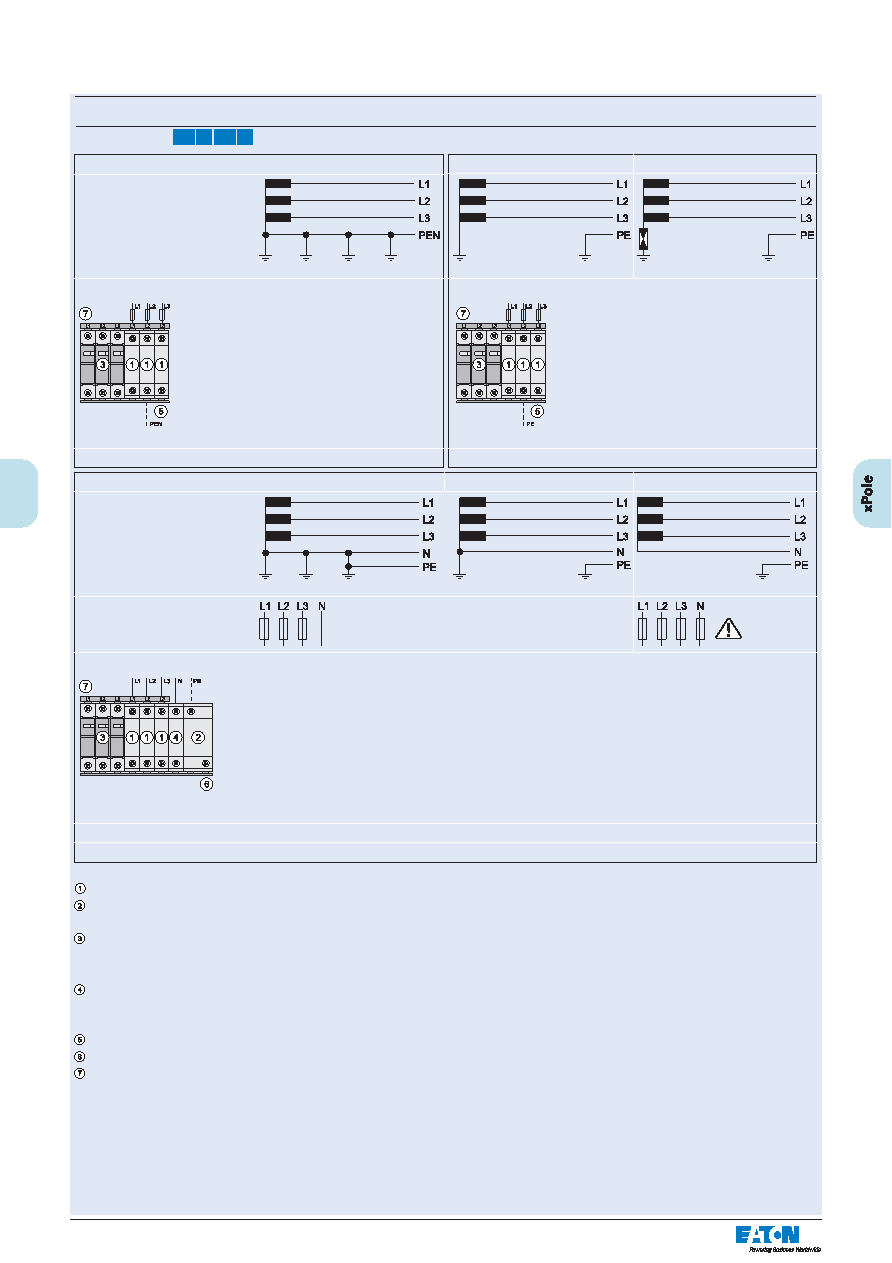

Busbar Connection Examples according to IEC 60364-5-53 Clause 534
SPD Class B+C SPI B SPC C
Lightning current arrester
. . .SPI-35/440
. . .SPI-100/NPE for protection class I, II, III, IV
SPI-50/NPE for protection class III, IV
. . .SPCT2-460/3
Lead-through terminal
. . .SPB-D-125
Busbar
. . .Z-GV-U/6
. . .Z-GV-U/9
. . .Z-GV-16/3P-3TE/6
CT2 . .Connection type 2
3 x 240/415 V AC
3 x 230/400 V AC
3 x 220/380 V AC
TN-C-System
TT-System 3 x 230 VAC
IT-System 3 x 230 VAC
SP-B+C/3
4 wires
SP-B+C/3
4 wires
3 x 240/415 V AC
3 x 230/400 V AC
3 x 220/380 V AC
TN-S-System
TT-System
IT-System 3 x 230/400 VAC
SP-B+C/3+1
CT2
5 wires
