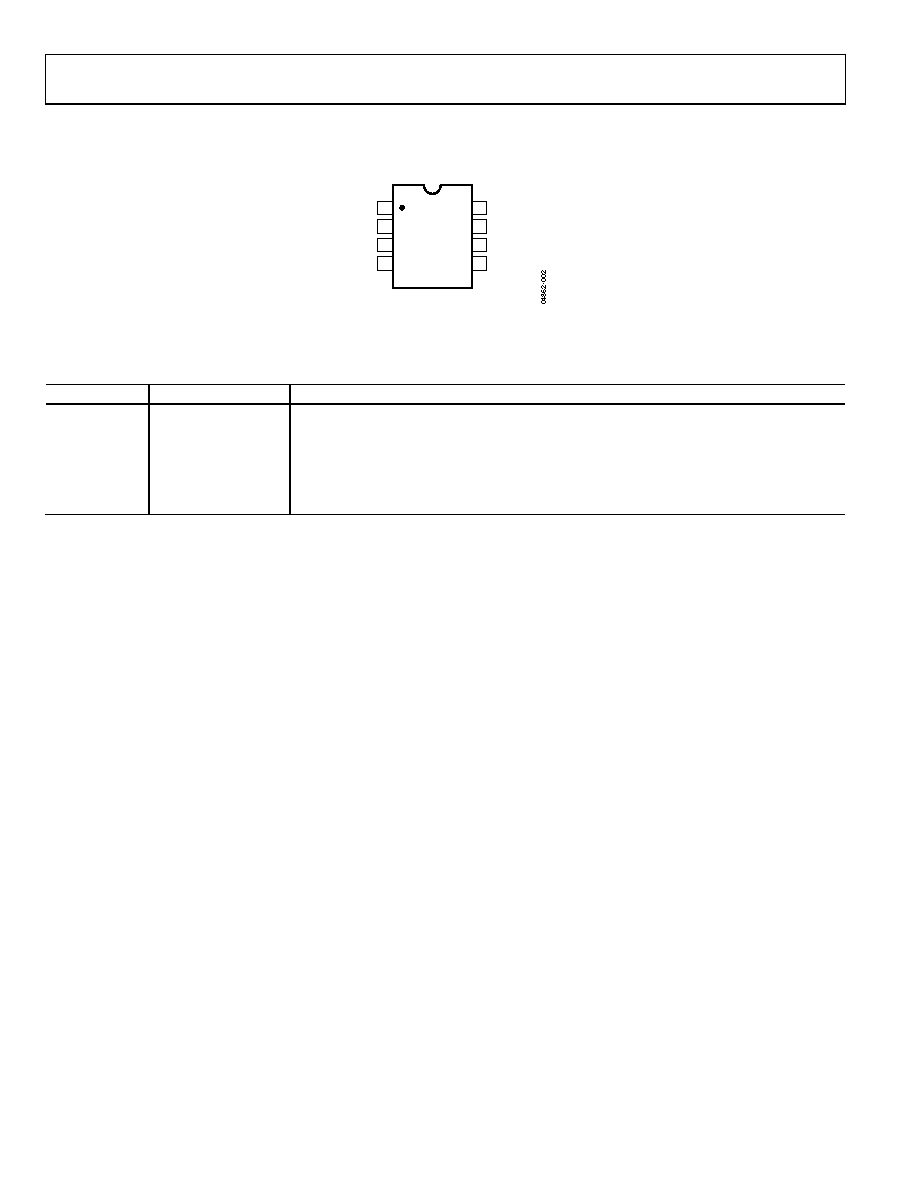

background image
AD8353
Rev. B | Page 6 of 16
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
COM1
NC
RFIN
COM2
COM1
RFOUT
VPOS
COM2
NC = NO CONNECT
AD8353
TOP VIEW
(Not to Scale)
1
2
3
4
8
7
6
5
Figure 2. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 8
COM1
Device Common. Connect to low impedance ground.
2
NC
No Connection.
3
RFIN
RF Input Connection. Must be ac-coupled.
4, 5
COM2
Device Common. Connect to low impedance ground.
6
VPOS
Positive Supply Voltage.
7
RFOUT
RF Output Connection. Must be ac-coupled.
