AD8318

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. E | 8 of 24

VPOS = 5 V; TA = +25°C, −40°C, +85°C; CLPF = 220 pF; RTADJ = 500 Ω; unless otherwise noted. Colors: +25°C → Black; −40°C → Blue; +85°C

→ Red.

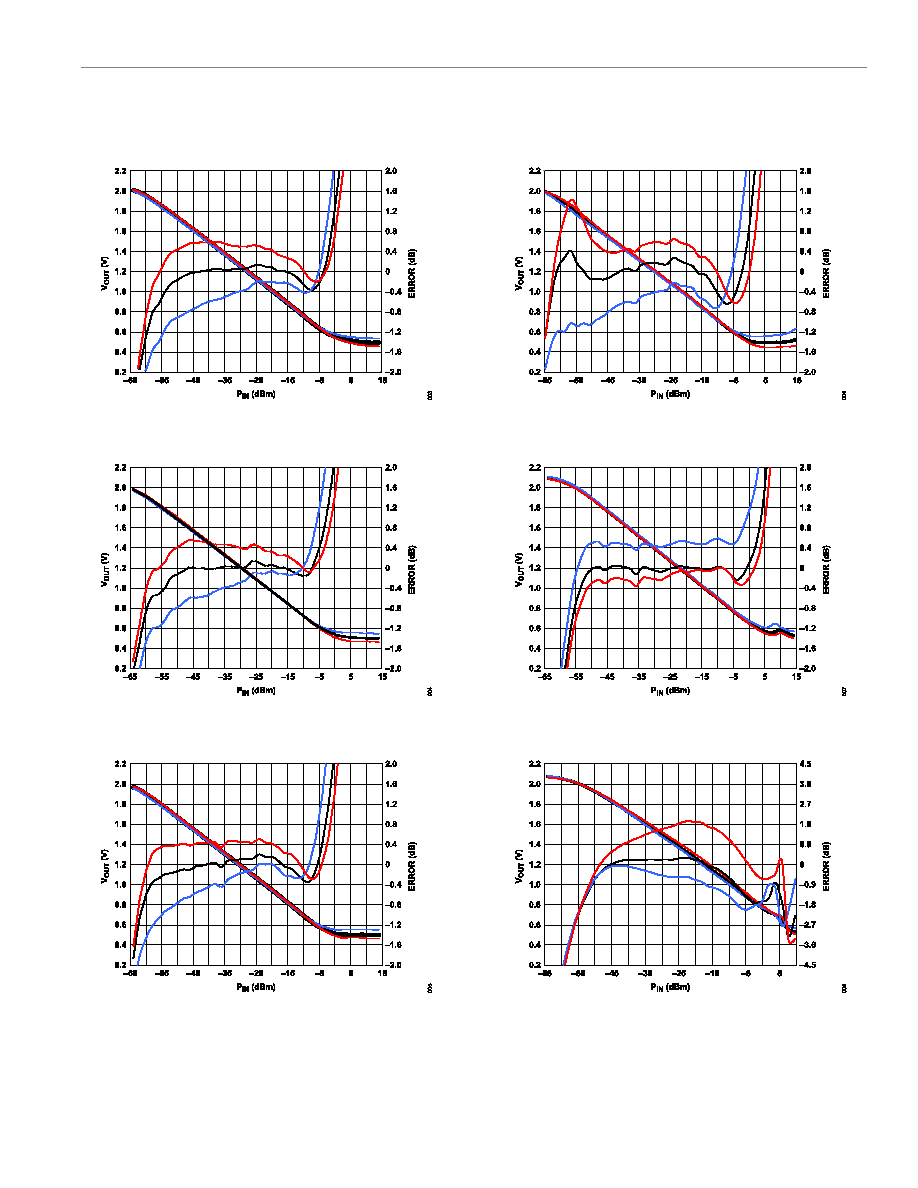

Figure 4. VOUT and Log Conformance vs. Input Amplitude at 900 MHz,

Typical Device

Figure 5. VOUT and Log Conformance vs. Input Amplitude at 1.9 GHz,

Typical Device

Figure 6. VOUT and Log Conformance vs. Input Amplitude at 2.2 GHz, Typical

Device

Figure 7. VOUT and Log Conformance vs. Input Amplitude at 3.6 GHz, Typical

Device, RTADJ = 51 Ω

Figure 8. VOUT and Log Conformance vs. Input Amplitude at 5.8 GHz,

Typical Device, RTADJ = 1000 Ω

Figure 9. VOUT and Log Conformance vs. Input Amplitude at 8 GHz, Typical

Device
