AD8318ACPZ-R2 Datasheet(PDF) 10 Page - Analog Devices

No. de pieza AD8318ACPZ-R2
Descripción Electrónicos  1 MHz to 8 GHz, 70 dB Logarithmic Detector/Controller
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  AD [Analog Devices]
Página de inicio  http://www.analog.com
Logo AD - Analog Devices

AD8318ACPZ-R2 Datasheet(HTML) 10 Page - Analog Devices

Back Button AD8318ACPZ-R2 Datasheet HTML 6Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 7Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 8Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 9Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 10Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 11Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 12Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 13Page - Analog Devices AD8318ACPZ-R2 Datasheet HTML 14Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 10 / 24 page
background image
Data Sheet
AD8318

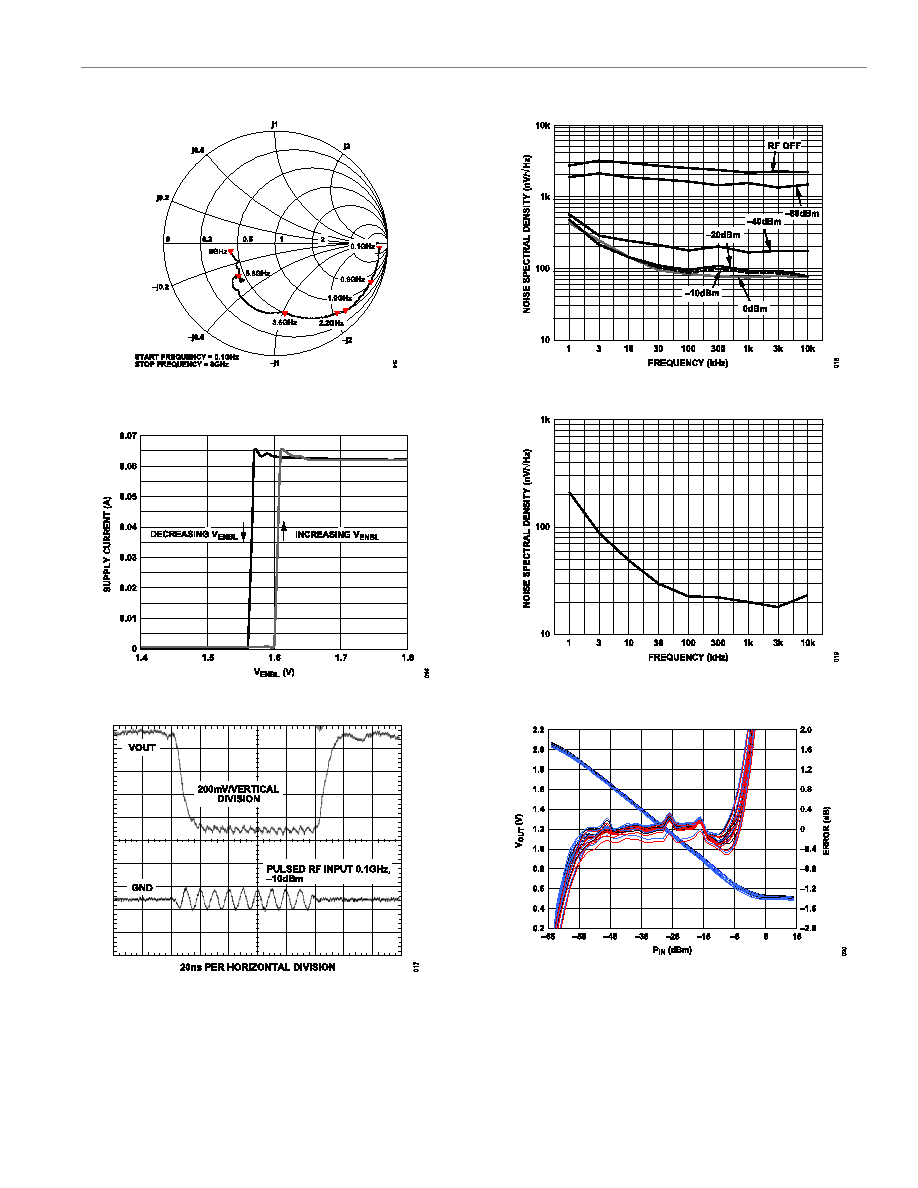

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 10 of 24
Figure 16. Input Impedance vs. Frequency; No Termination Resistor on INHI,
ZO = 50 Ω
Figure 17. Supply Current vs. Enable Voltage
Figure 18. VOUT Pulse Response Time; Pulsed RF Input 0.1 GHz, –10 dBm;
CLPF = Open
Figure 19. Noise Spectral Density of Output; CLPF = Open
Figure 20. Noise Spectral Density of Output Buffer (from CLPF to VOUT);
CLPF = 0.1 µF
Figure 21. Output Voltage Stability vs. Supply Voltage at 1.9 GHz When VP
Varies by 10%, Multiple Devices
