AP8012H

Chipown

13/F, Building C, Wangzhuang Technology Innovation Center, Longshan Road,New District, Wuxi Tel: +86(510)85217718 http://www.chipown.com

Rev.A 1801 1 / 10

Low Standby-Power Off-line PWM converters

General Description

The AP8012H consists of a Pulse Width Modulator (PWM) controller and a power MOSFET, specifically designed for a high

performance off-line converter with minimal external components. AP8012H offers complete protection coverage with

automatic self-recovery feature including Cycle-by-Cycle current limiting (OCP), over temperature protection (OTP),

under-voltage Lockout protection(UVLO)，VDD over-voltage protection(OVP), and soft-start. Burst mode operation and device

very low consumption helps to meet the standby energy saving regulations. Excellent EMI performance is achieved with

frequency modulation. The device consists of a high voltage start-up circuit in order to reduce the system set-up time. The

device provides an advanced platform well suited for low standby-power and cost-effective flyback converters.

Features

■ Integrated 800V avalanche-rugged power MOSFET

■ 85V to 265V wide range AC voltage input

■ Semi enclosed steady output power 6W(DIP-8)@85~265VAC

■ Frequency modulation for low EMI

■ Burst-mode Operation

■ Built-in Soft Start

■ Internal HV Start-up Circuit

■ Excellent Protection :



Over Current Protection (OCP)



Over Temperature Protection (OTP)



VDD over-voltage protection (OVP)

Applications

■ Electromagnetic Oven power supplies

■ Small household application power supplies (Coffee

machine, Electric kettle, etc.)

Package/Order Information

Order codes

Package

AP8012HNEC-T1E

DIP-8

AP8012HNEC-T1L

DIP-8

AP8012HSEC-R1

SOP-8

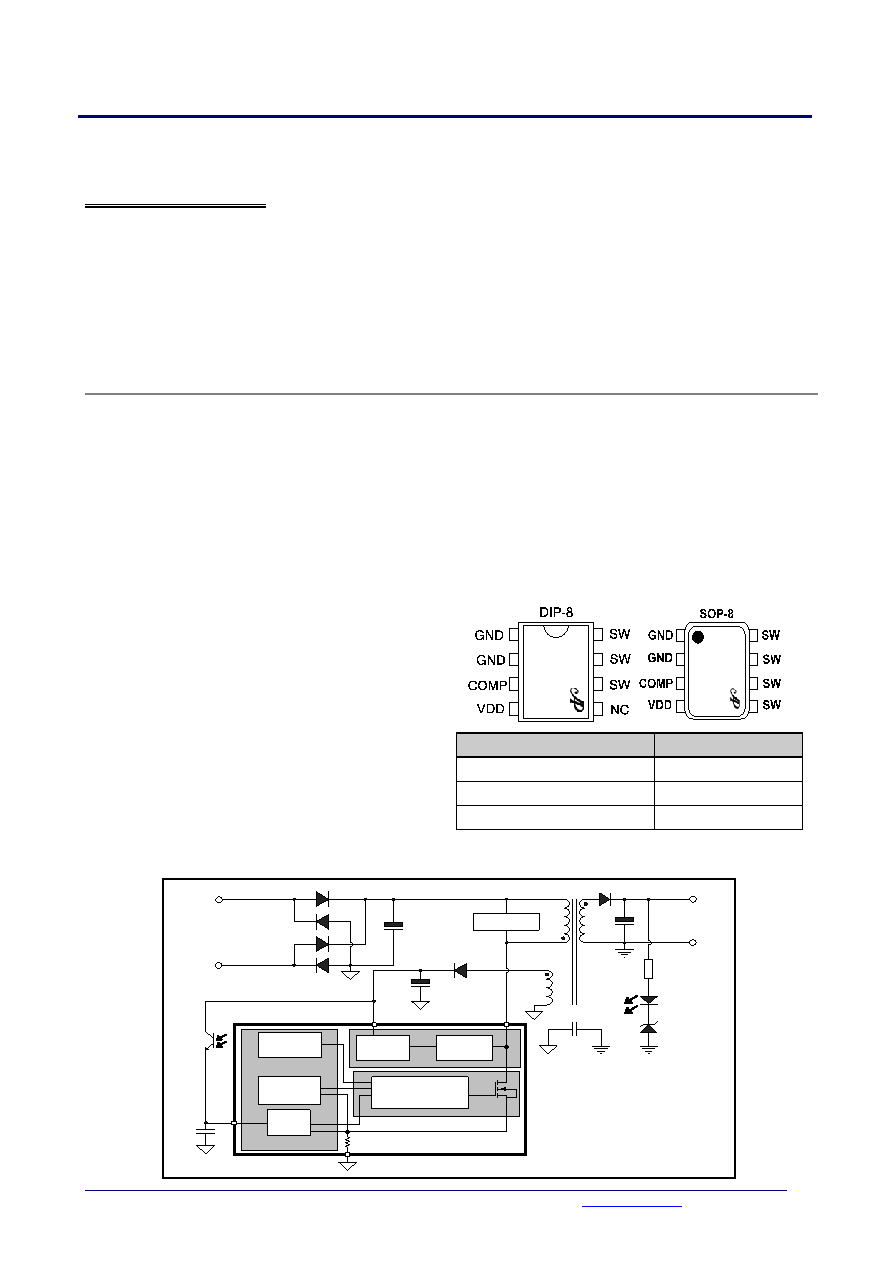

Typical Application

GN D

CO M P

S nubber

AC

8 5~ 265V

DC

O u tput

FB

Block

C ontrol

Block

OTP

Block

H V S tart

Block

PW M Sw itch

&G ate D river

SU PP LY

&U VLO

VD D

SW

A P 8012H
