SSM2311
Rev. 0 | Page 13 of 20

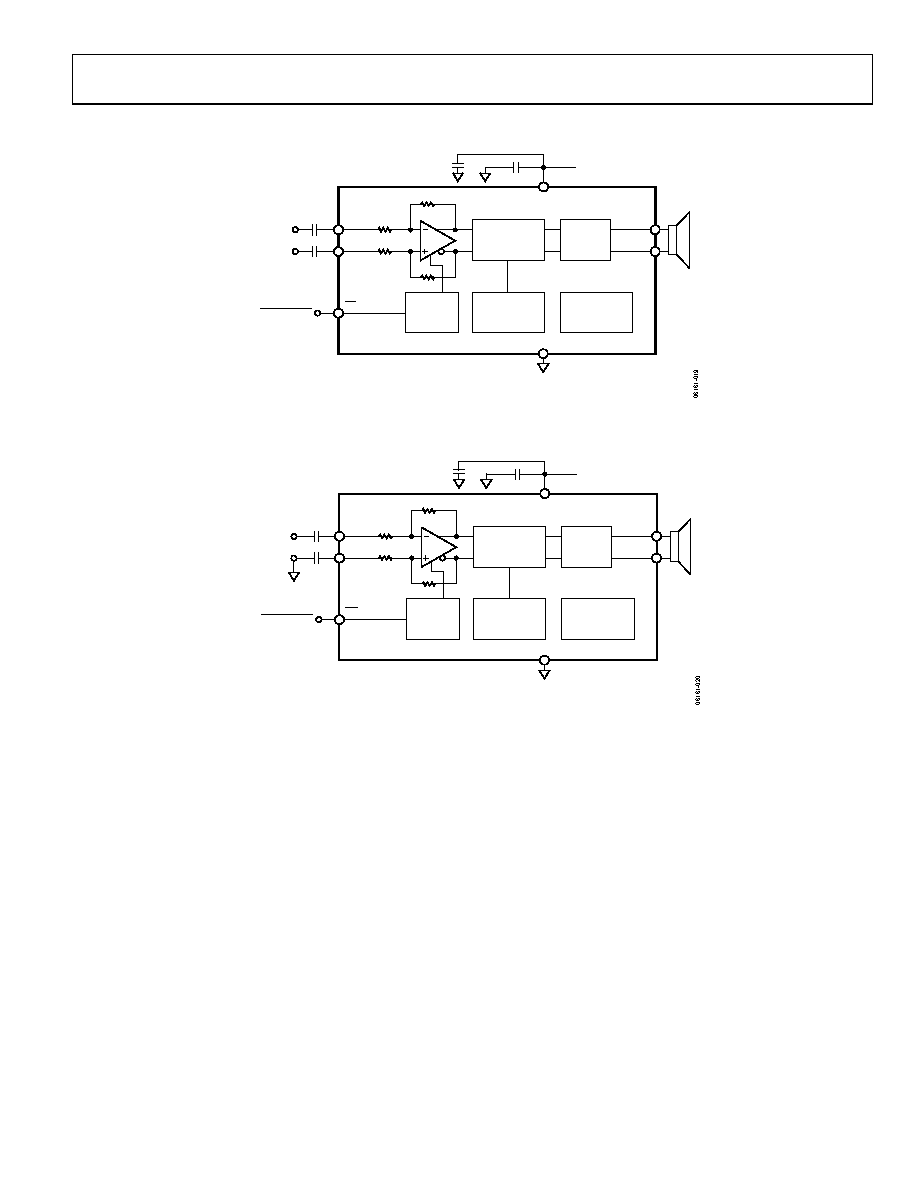

TYPICAL APPLICATION CIRCUITS
SHUTDOWN
FET
DRIVER
MODULATOR
0.1µF
VDD
GND
OSCILLATOR
POP/CLICK
SUPPRESSION
OUT+
OUT–
BIAS
IN+
VBATT
2.5V TO 5.0V
IN–
10µF
22nF1
300kΩ
300kΩ
37.5kΩ
37.5kΩ
1 INPUT CAPS ARE OPTIONAL IF INPUT DC COMMON-MODE
VOLTAGE IS APPROXIMATELY VDD/2.
22nF1
SD
AUDIO IN–
AUDIO IN+
SSM2311
Figure 43. Differential Input Configuration
SHUTDOWN
FET
DRIVER
MODULATOR
0.1µF
VDD
GND
OSCILLATOR
POP/CLICK
SUPPRESSION
OUT+
OUT–
BIAS
IN+
VBATT
2.5V TO 5.0V
IN–
10µF
22nF1
300kΩ
300kΩ
37.5kΩ
37.5kΩ
1 INPUT CAPS ARE OPTIONAL IF INPUT DC COMMON-MODE
VOLTAGE IS APPROXIMATELY VDD/2.
22nF1
SD
AUDIO IN+
SSM2311
Figure 44. Single-Ended Input Configuration
