SSM2311
Rev. 0 | Page 17 of 20

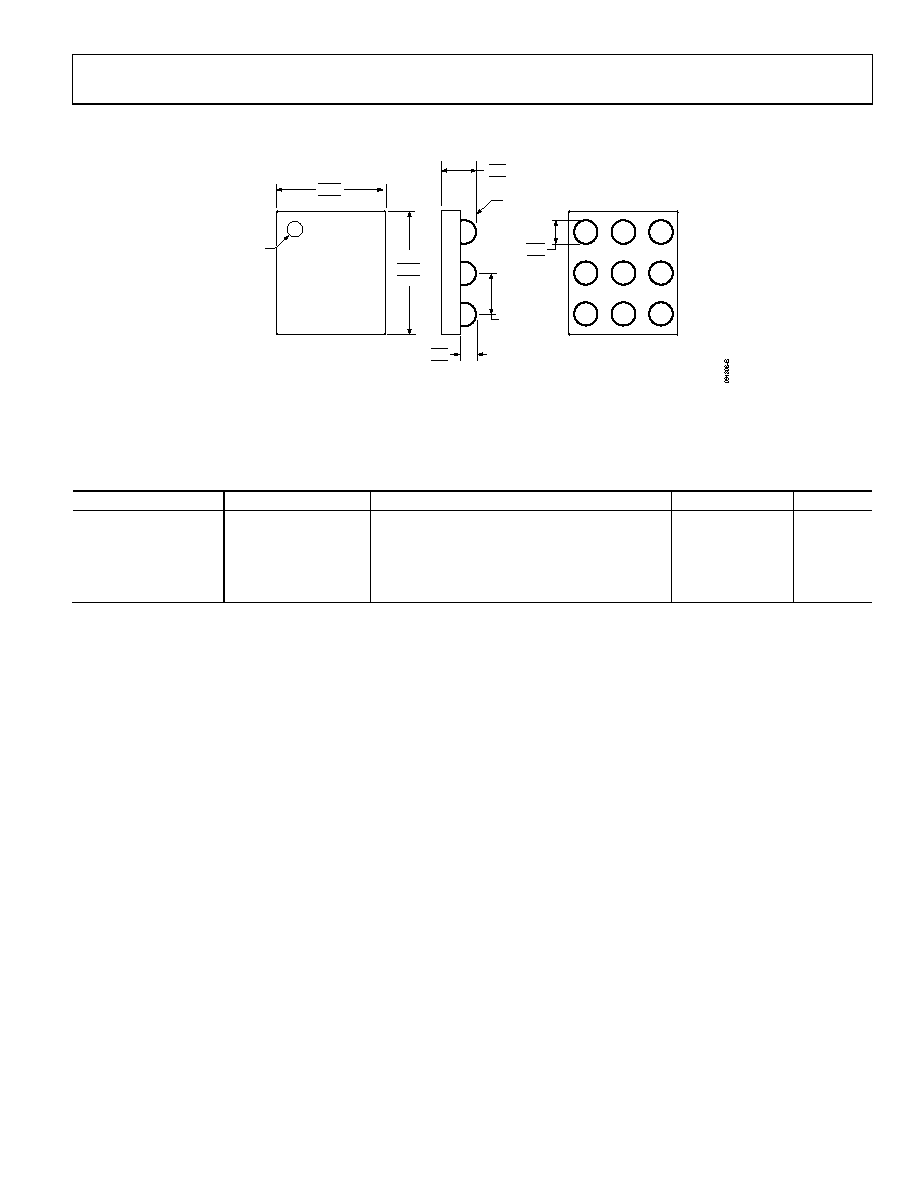

OUTLINE DIMENSIONS
SEATING
PLANE
0.50 BSC
BALL PITCH
1.575
1.515
1.455
1.750
1.690
1.630
0.28
0.24
0.20
0.35
0.32
0.29
0.65
0.59
0.53
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
A
1
2
3
B
C
BALL 1
IDENTIFIER
Figure 48. 9-Ball Wafer Level Chip Scale Package [WLCSP]
(CB-9-1)
Dimensions shown in millimeters
ORDERING GUIDE
Model
Temperature Range
Package Description
Package Option
Branding
SSM2311CBZ-R21
−40°C to +85°C
9-Ball Wafer Level Chip Scale Package [WLCSP]
CB-9-1
A1G
SSM2311CBZ-REEL1
−40°C to +85°C
9-Ball Wafer Level Chip Scale Package [WLCSP]
CB-9-1
A1G
SSM2311CBZ-REEL71
−40°C to +85°C
9-Ball Wafer Level Chip Scale Package [WLCSP]
CB-9-1
A1G
SSM2311-EVALZ1
Evaluation Board
SSM2311-MINI-EVALZ1
Evaluation Board, 7 mm × 7 mm
1 Z = RoHS Compliant Part.
