E3ZM-V
13

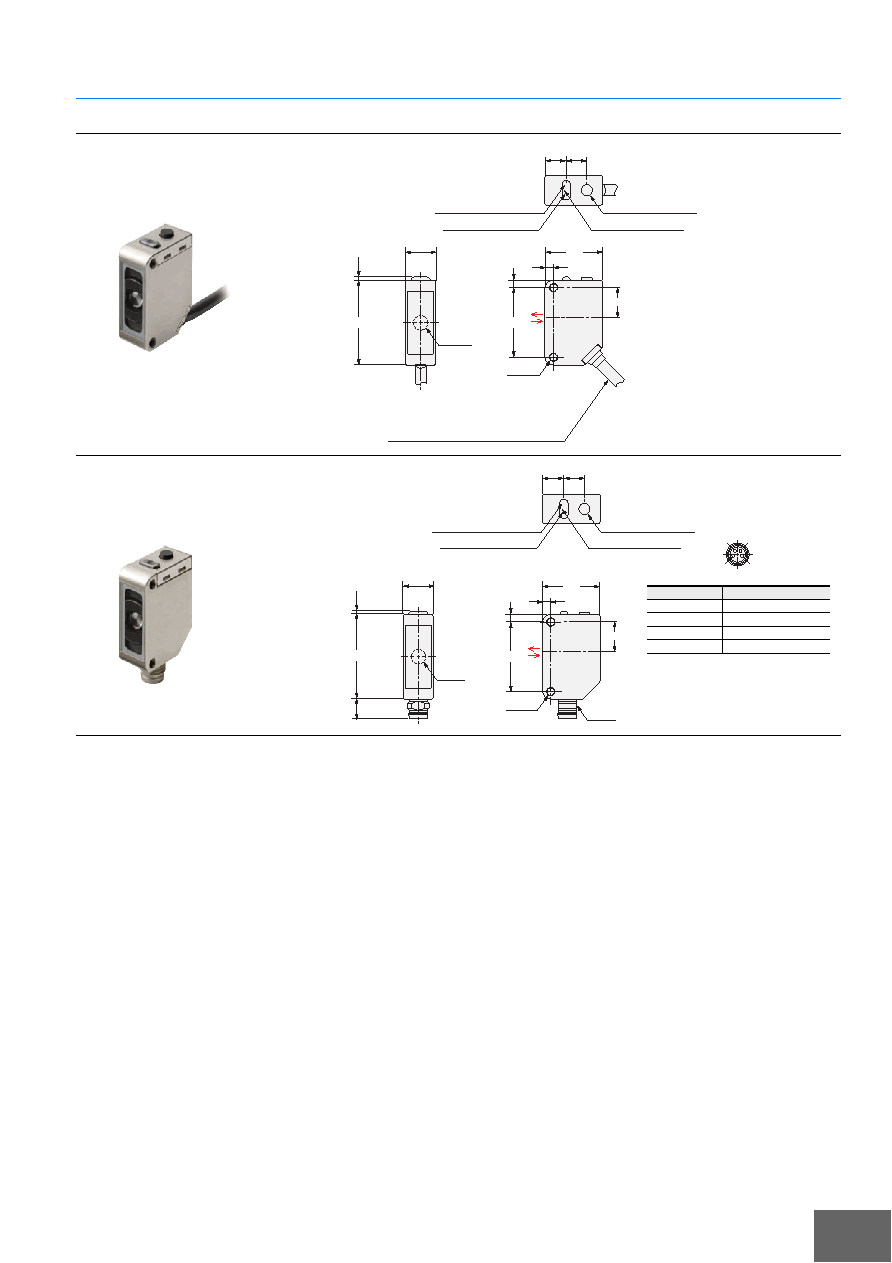

Dimensions
Sensors
(Unit: mm)
Mark Sensor
(Diffuse reflective)
Pre-wired Models
E3ZM-V61
E3ZM-V81
21
21
25.4
3
2.8
12.7
Teaching button (4 dia.)
Teaching indicator (red)
4 dia. vinyl-insulated round cable with 4
conductors (Conductor cross section:
0.2 mm2 (AWG24), Insulator diameter: 1.1 mm),
Standard length: 2 m
7.8
7.5
10.8
10.8
31
31
1.2
Lens
6 dia.
Stability indicator (green)
Operation Indicator (yellow)
Two, M3
Mark Sensor
(Diffuse reflective)
M8 Connector
E3ZM-V66
E3ZM-V86
10.8
10.8
31
31
1.2
7
21
21
25.4
3
2.8
12.7
7.8
7.5
Lens
6 dia.
Teaching button (4 dia.)
Teaching indicator (red)
Stability indicator (green)
Operation Indicator (yellow)
M8
×1
Two, M3
24
13
Terminal No.
Specifications
1+V
2
Remote control input
30 V
4
Output
