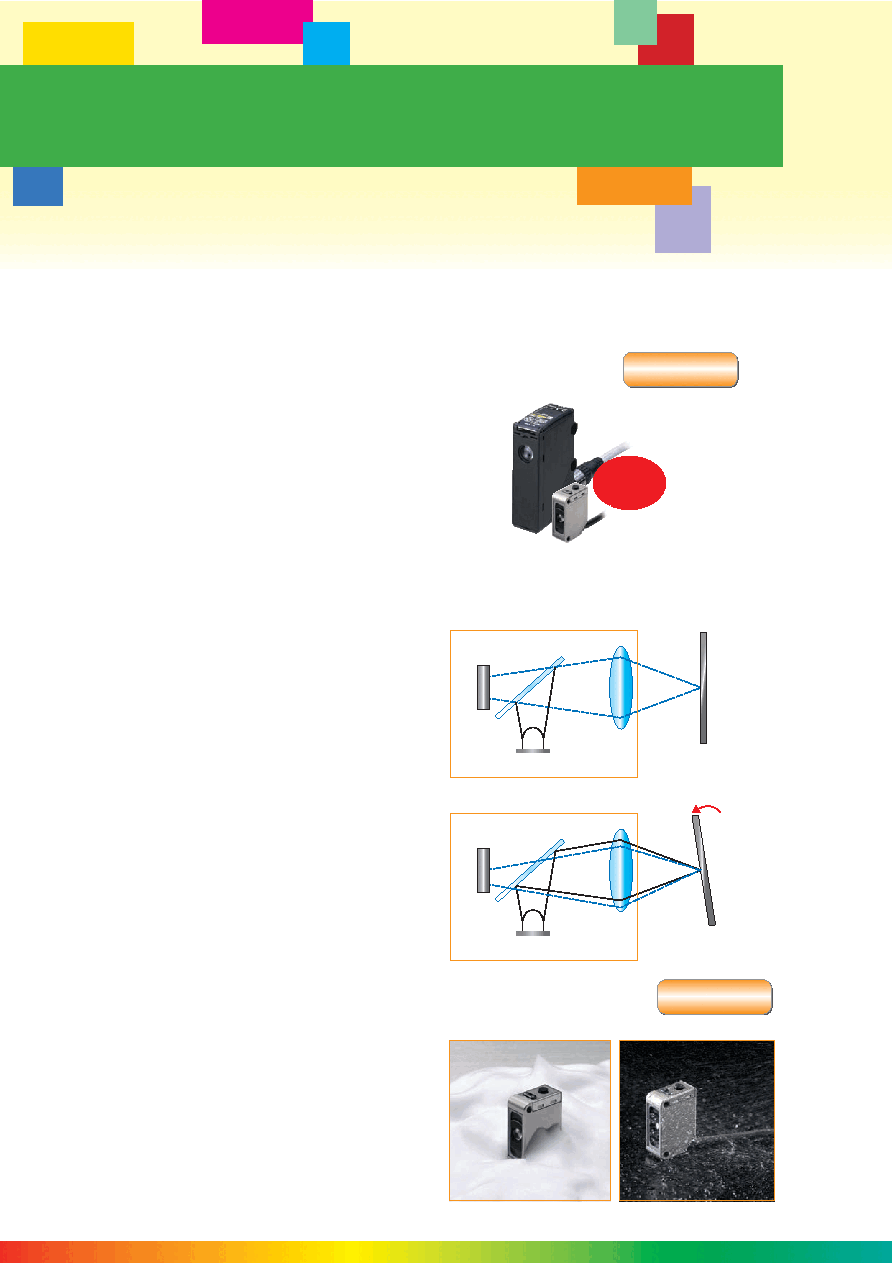

Color Mark Sensors Now Join the E3ZM Series of

Photoelectric Sensors for the Food Industry

■ Coaxial Optical System in a Compact Design

Although the E3ZM-V is only 11 × 21 ×

32 mm, it uses a coaxial optical system.

Even if the sensing object is inclined,

reflected light is captured with the

coaxial optical system to provide stable

detection.

Straight Sensing Object

RGB

light-receiving

element

Half mirror

Lens

White LED

Sensing object

(with regular reflection)

Inclined Sensing Object

RGB

light-receiving

element

Half mirror

Lens

White LED

Sensing object

(with regular reflection)

✽According to OMRON

investigation.

■ IP69K Degree of Protection with an SUS316L Housing

The housing is constructed of corrosion-resistant

SUS316L, and the display cover is PES

(polyethersulfone). Both materials are highly

resistant to the effects of detergents and

disinfectants. IP69K degree of protection also

allows the E3ZM-V to withstand washing with

high-temperature, high-pressure water. This

makes the E3ZM-V well suited to use in sites

requiring a high level of hygiene.

■ Space-saving Design with an SUS316L Housing

The compact design reduces volume by 90%

compared with previous OMRON models.

And the world-standard dimensions

contribute to standardized installation

specifications.

Previous OMRON model

(E3M-V)

Only 10%

the volume!

E3ZM-V

World's Smallest

✽ Color-mark Sensor

with Built-in Amplifier

The E3ZM-V provides superior optical performance and yet is

the same size as the E3Z. This compact, high-speed Mark

Sensor remains accurate in spite of sensing object movement.

E3ZM

Standard Size

Same Durability

as the E3ZM
