ELECTRICAL SPECIFICATIONS
Issue 1.0 - July 24, 2002
63/111
4.5.9 IDE INTERFACE
Figure 4-13, Figure 4-14 and Table 4-18 lists the
AC characteristics of the IDE interface.

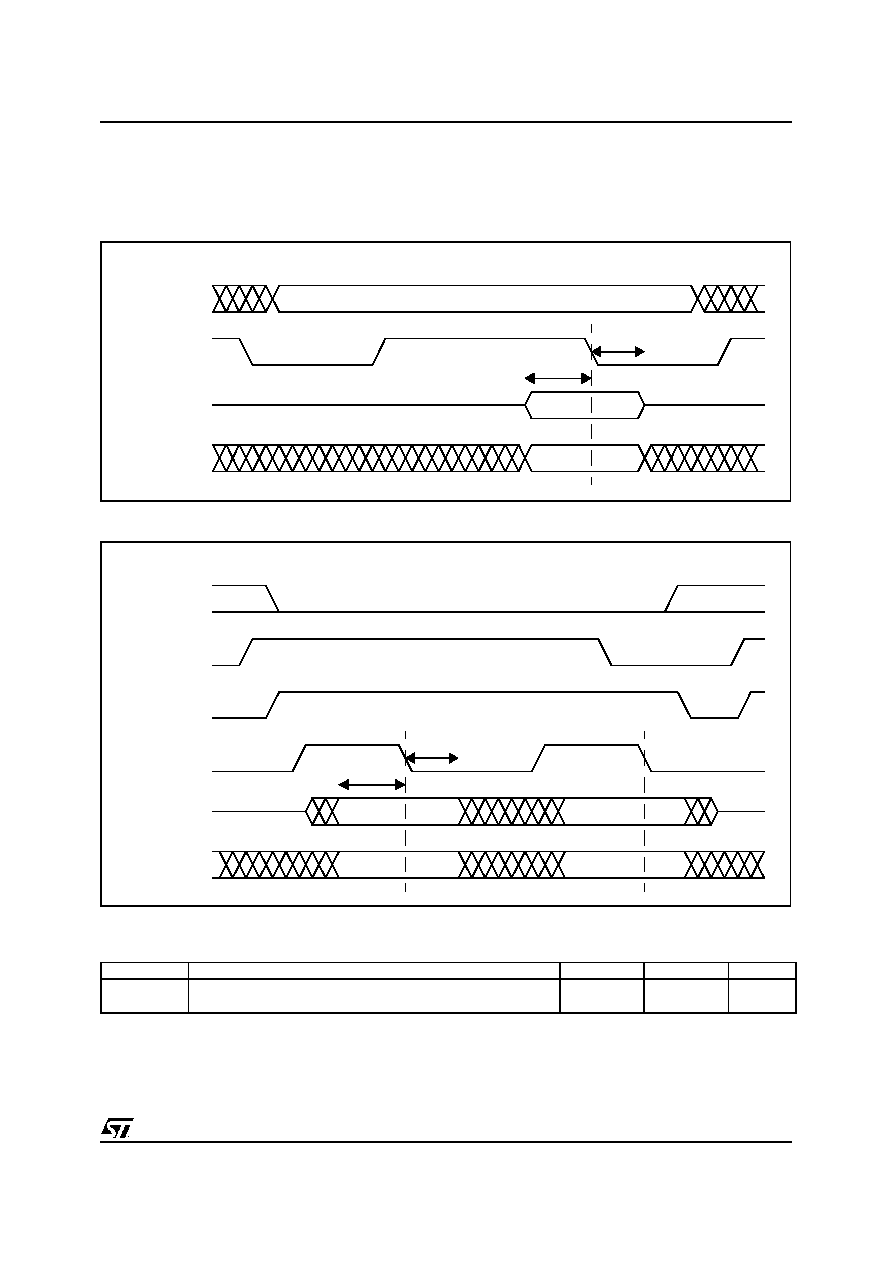

Figure 4-13. IDE PIO timing diagram
Figure 4-14. IDE DMA timing diagram
DIOR#,DIOW#
CS#,DA[2:0]
DD[15:0]
Thold
IORDY
Tsetup
DIOR#,DIOW#
CS#
DD[15:0] read
DD[15:0] write
REQ
ACK#
Thold
Tsetup
Table 4-18. IDE Interface Timing
Name
Parameters
Min
Max
Units
Tsetup
DD[15:0] setup to PIOR#/SIOR# falling
15
-
ns
Thold
DD[15:0} hold to PIOR#/SIOR# falling
0
-
ns
