ADRF6807
Data Sheet
Rev. B | Page 10 of 36
–90
–85
–80
–75
–70
–65
–60
–55
–50
700
725
750
775
800
825
850
875
900
925
950
975
1000
1025
1050
LO FREQUENCY (MHz)
LPEN = 0
LPEN = 1

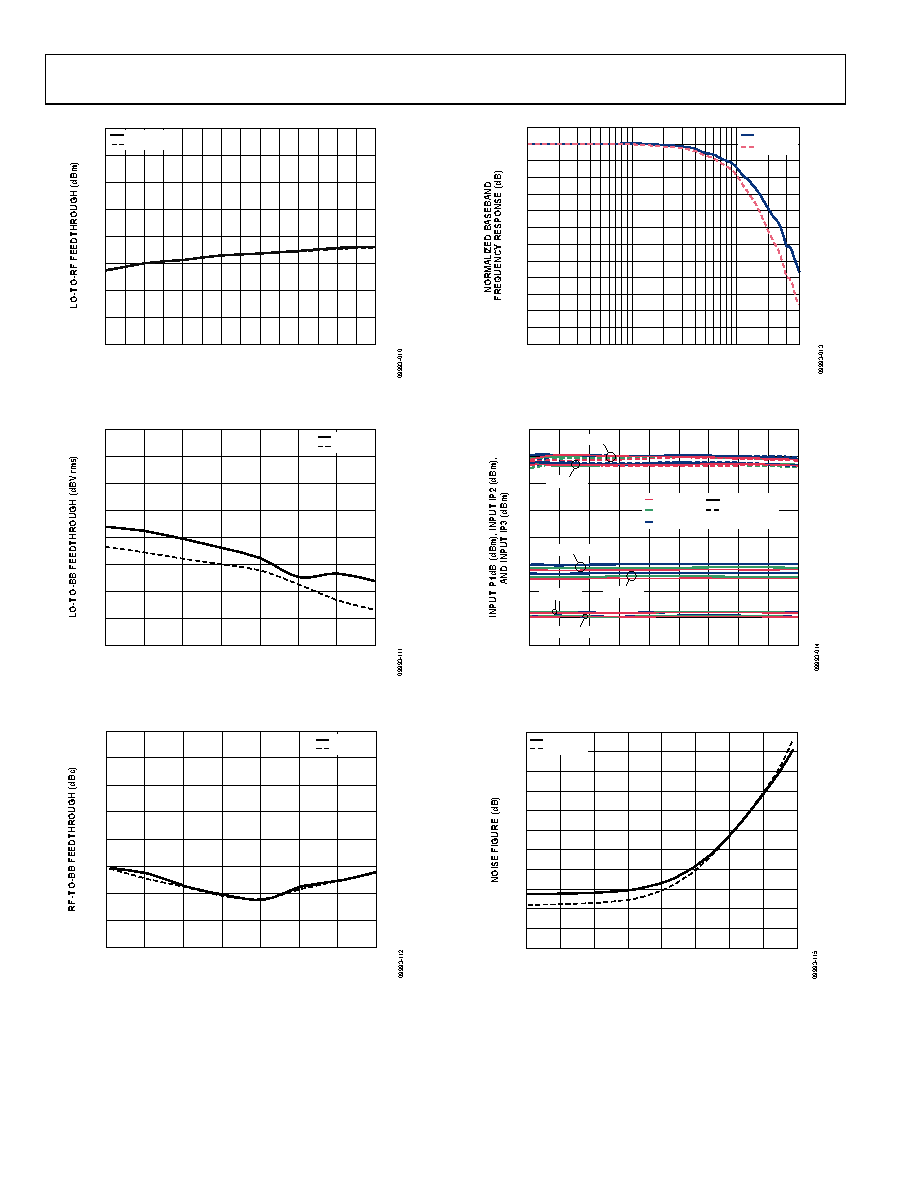

Figure 10. LO-to-RF Feedthrough vs. LO Frequency, LO Output Turned Off
700
750
800
850
900
950
1000
1050
LO FREQUENCY (MHz)
–70
–65
–80
–75
–60
–55
–50
–45
–40
LPEN = 0
LPEN = 1
Figure 11. LO-to-BB Feedthrough vs. LO Frequency, LO Output Turned Off
–70
–65
–60
–55
–50
–45
–40
–35
–30
700
750
800
850
900
950
1000
1050
LPEN = 0
LPEN = 1
RF FREQUENCY (MHz)
Figure 12. RF-to-BB Feedthrough vs. RF Frequency
–12
–11
–10
–9
–8
–7
–6
–5
–4
–3
–2
–1
0
1
110
100
BASEBAND FREQUENCY (MHz)
400
LPEN = 0
LPEN = 1
Figure 13. Normalized BB Frequency Response
0
10
20
30
40
50
60
70
80
5
101520
253035
404550
BASEBAND FREQUENCY (MHz)
IP1dB
IIP3
IIP2
LPEN = 0
LPEN = 1
LPEN = 0
LPEN = 1
LPEN = 0
LPEN = 1
TA = +85°C
TA = +25°C
TA = –40°C
I CHANNEL
Q CHANNEL
Figure 14. Input P1dB, Input IP2, and Input IP3 vs. BB Frequency
8
10
12
14
16
18
20
22
24
26
28
30
–30
–25
–20
–15
–10
–5
0
5
10
INPUT BLOCKER POWER (dBm)
LPEN = 0
LPEN = 1
Figure 15. Noise Figure vs. Input Blocker Power,
fLO = 900 MHz (RF Blocker 5 MHz Offset)
