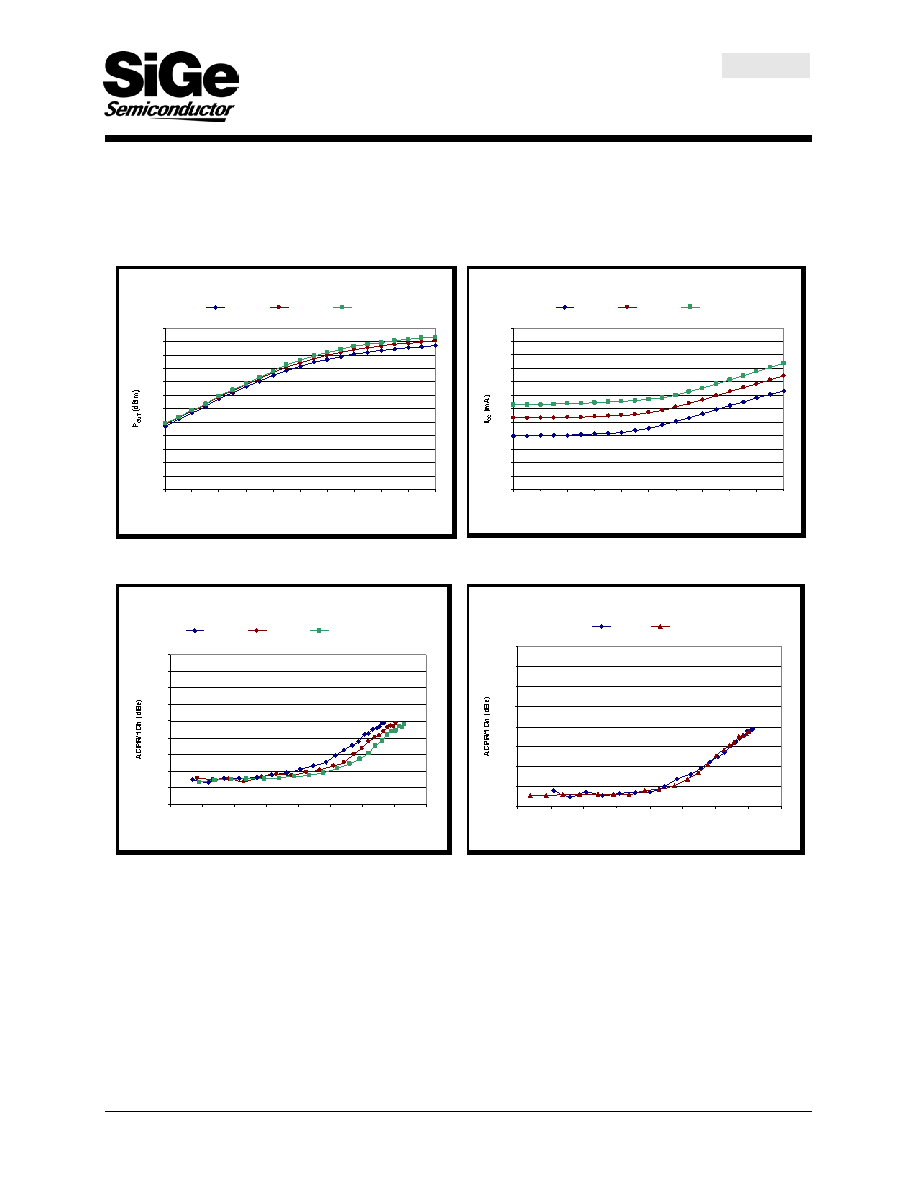

SE2522L
RangeCharger™ 2.4 GHz Power Amplifier And Power Detector IC
Preliminary Information
Typical Performance Characteristics
Conditions:
VCC=3.3V, VCTL=1.6V, VEN=3.3V, F=2.45GHz, using IEEE802.11b modulation, and matching networks
optimized for linear output power performance. Performance graphs are based on preliminary
evaluation information and may differ from the AC and DC electrical specifications.
Output Power vs. Input Power
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
2
P
IN (dBm )
3.0V/T=25C
3.3V/T=25C
3.6V/T=25C
Supply Current vs. Input Power
50
60
70
80
90
100
110
120
130
140
150
160
170
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
2
P
IN (dBm )
3.0V/T=25C
3.3V/T=25C
3.6V/T=25C
ACPR vs. Output Power
-45.0
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
P
OUT (dBm )
3.0V/T=25C
3.3V/T=25C
3.6V/T=25C
ACPR Across Frequency Band (VCC=3.3V)
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
P
OUT (dBm )
f = 2.4GHz
f = 2.5GHz
18-DST-01 Rev 2.4 Aug 7/02
