ASPI-6045S

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000| fax 949-546-8001| www.abracon.com

Revised: 02.05.14

Visit www.abracon.com for Terms & Conditions of Sale

Wire Wound Magnetically Shielded SMD Power Inductor

6.0 x 6.0 x 4.5mm

ABRACON IS

ISO9001:2008

CERTIFIED

Pb RoHS/RoHS II compliant

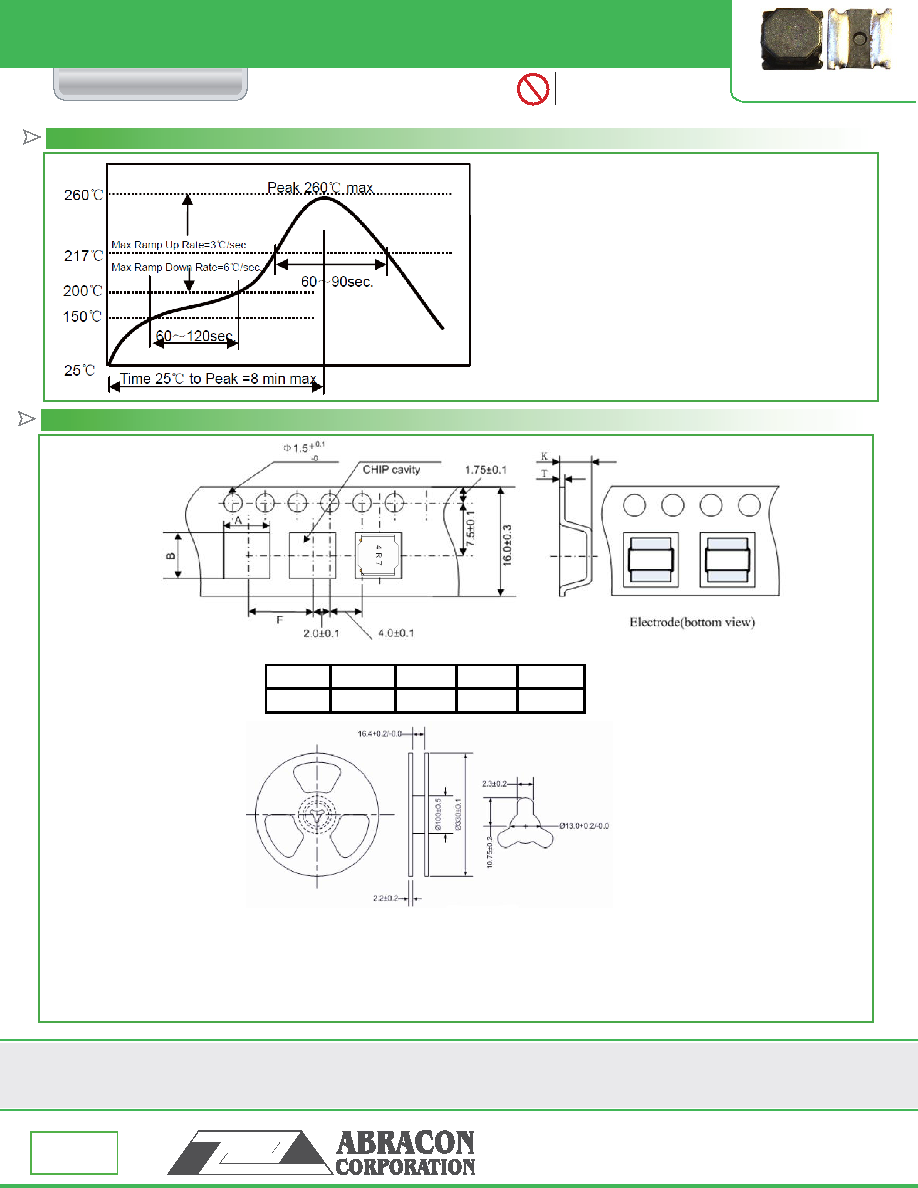

REFLOW PROFILE

TAPE & REEL:

Packing

T: 1,500pcs / reel

Storage Conditions

a. To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and

humidity in the storage area should be controlled.

b. Recommended conditions: -10oC ~ 40 oC, 70% RH (Max.)

c. Even under ideal storage conditions, solderability of products electrodes may decrease as time passes. For this reason, product

should be used with one year from the time of delivery.

d. In case of storage over 6 months, solderability shall be checked before actual usage.

Dimension: mm

ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.

Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component

failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from

Abracon Corporation is required. Please contact Abracon Corporation for more information.

∆ 1~2 °C /sec. Ramp

∆ Pre-heating: 150~190°C /120±30sec.

∆ Time above 240°C: 20~60sec

∆ Peak temperature: 260°C Max/10sec.

∆ Solder paste: Sn/3.0Ag/0.5Cu

∆ Max.2 times for re-flowing

6.20±0.10

6.25±0.10

8.0±0.10

4.7±0.10

0.40±0.03
