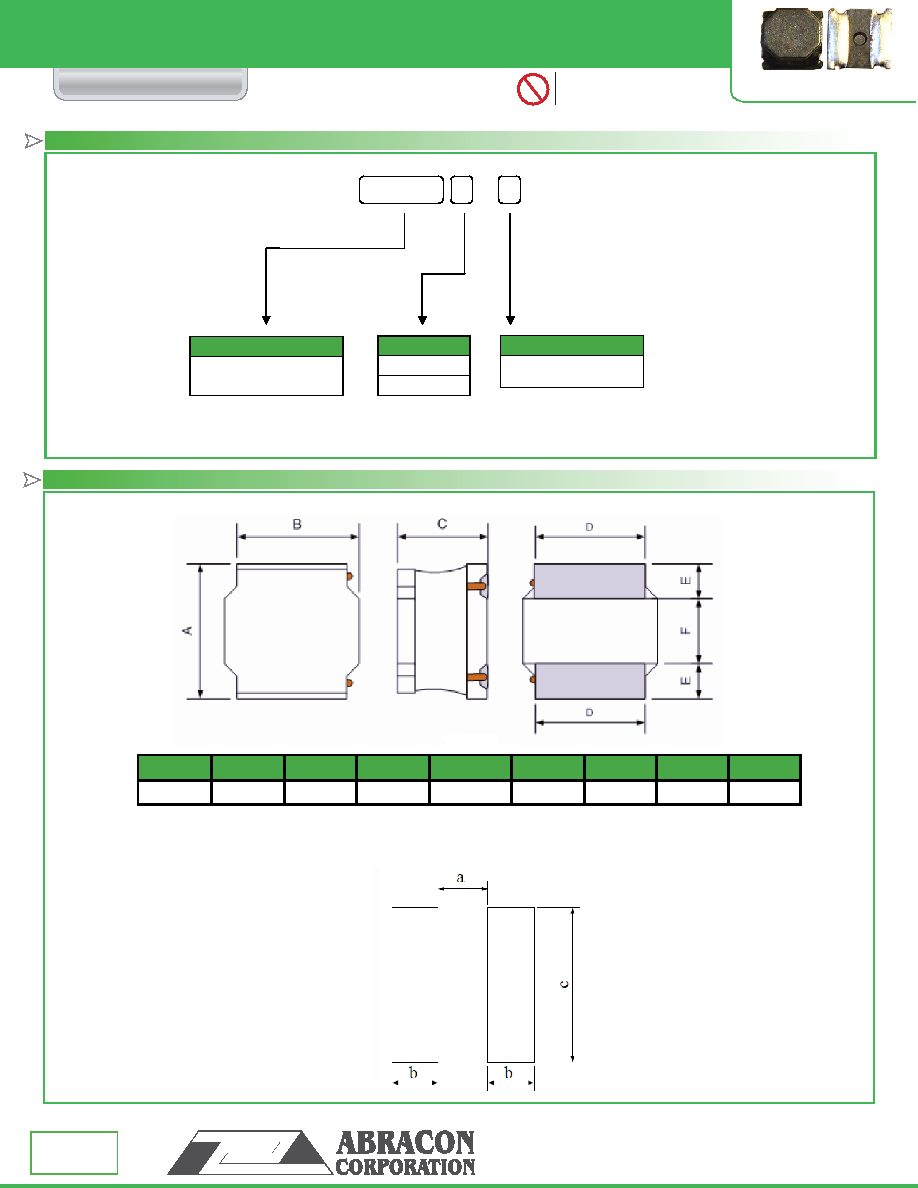

ASPI-6045S
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000| fax 949-546-8001| www.abracon.com
Revised: 02.05.14
Visit www.abracon.com for Terms & Conditions of Sale
Wire Wound Magnetically Shielded SMD Power Inductor
6.0 x 6.0 x 4.5mm
ABRACON IS
ISO9001:2008
CERTIFIED
Pb RoHS/RoHS II compliant
ASPI-6045S -
-
*M for 4.3µH~330µH
*N for 0.82µH~3.6µH
Inductance Code
Please refer to the
table above
Tolerance
M: ±20% *
N: ±30% *
Packaging
T: Tape and Reel
(1,500kpcs / reel)
PART IDENTICATION:
A
B
C Max.
D
E
F
a Typ.
b Typ.
c Typ.
6.0±0.3
6.0±0.3 4.5Max. 4.9±0.3
1.55±0.3
2.9±0.3 2.8Typ. 1.7Typ.
5.7Typ
Recommended Land Pattern
OUTLINE DIMENSIONS:
