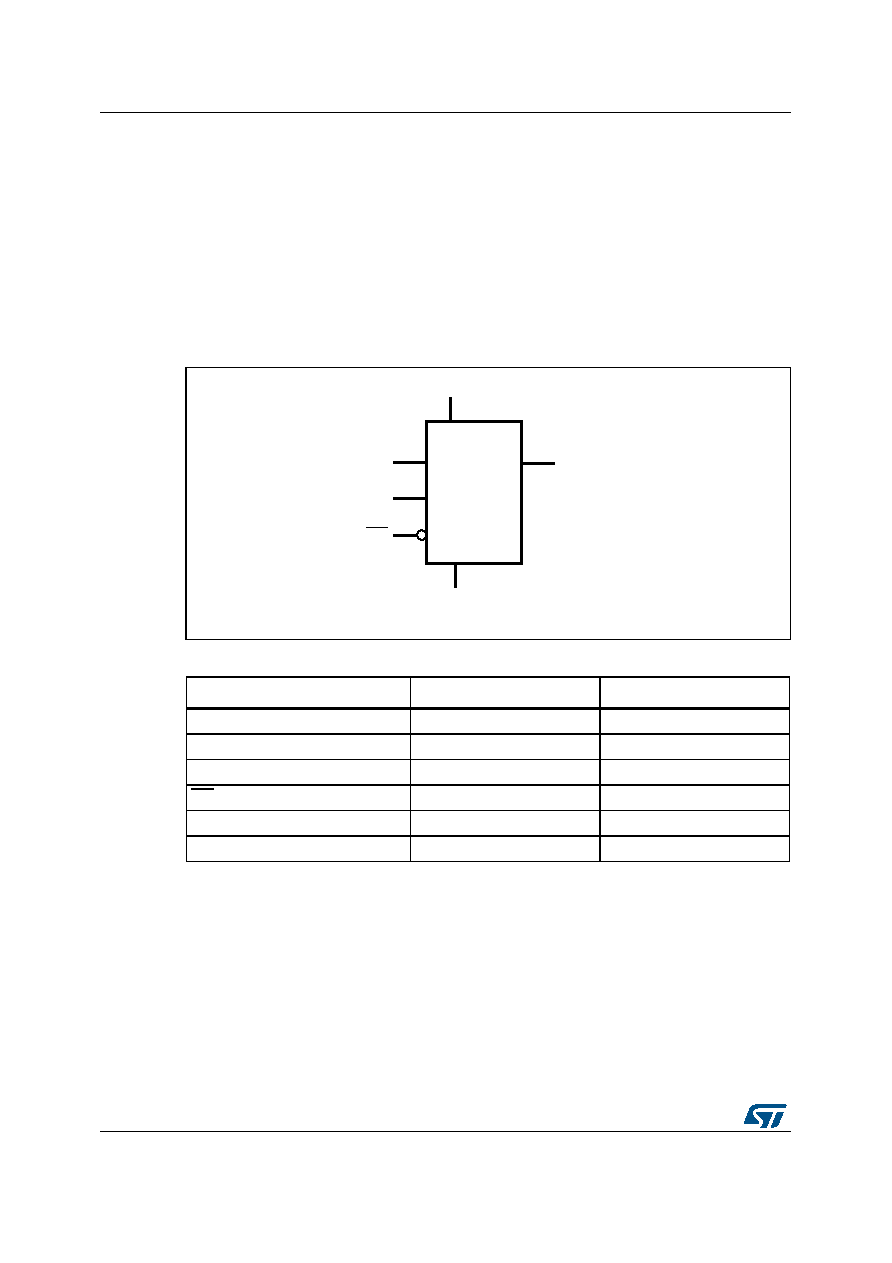

6 / 38 page  Description M24C08-W M24C08-R M24C08-F 6/38 DocID023924 Rev 4 1 Description The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 1 K × 8 bits. The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a clock frequency of 400 kHz. Figure 1. Logic diagram Table 1. Signal names Signal name Function Direction E2(1) 1. Signal not connected in the WLCSP package. Chip Enable Input SDA Serial Data I/O SCL Serial Clock Input WC(1) Write Control Input VCC Supply voltage - VSS Ground - |
|
