MLZ2012M100W Datasheet(PDF) 4 Page - TDK Electronics

No. de pieza MLZ2012M100W
Descripción Electrónicos  Inductors for Decoupling Circuits Multilayer Ferrite
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  TDK [TDK Electronics]
Página de inicio  http://www.tdk.com
Logo TDK - TDK Electronics

MLZ2012M100W Datasheet(HTML) 4 Page - TDK Electronics

  MLZ2012M100W Datasheet HTML 1Page - TDK Electronics MLZ2012M100W Datasheet HTML 2Page - TDK Electronics MLZ2012M100W Datasheet HTML 3Page - TDK Electronics MLZ2012M100W Datasheet HTML 4Page - TDK Electronics MLZ2012M100W Datasheet HTML 5Page - TDK Electronics MLZ2012M100W Datasheet HTML 6Page - TDK Electronics MLZ2012M100W Datasheet HTML 7Page - TDK Electronics MLZ2012M100W Datasheet HTML 8Page - TDK Electronics MLZ2012M100W Datasheet HTML 9Page - TDK Electronics Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 26 page
background image
(4/25)
INDUC
T
O
RS
001-01 / 20130929 / inductor_decoupling_mlz_en.fm
• All specifications are subject to change without notice.
Overview of the MLZ Series

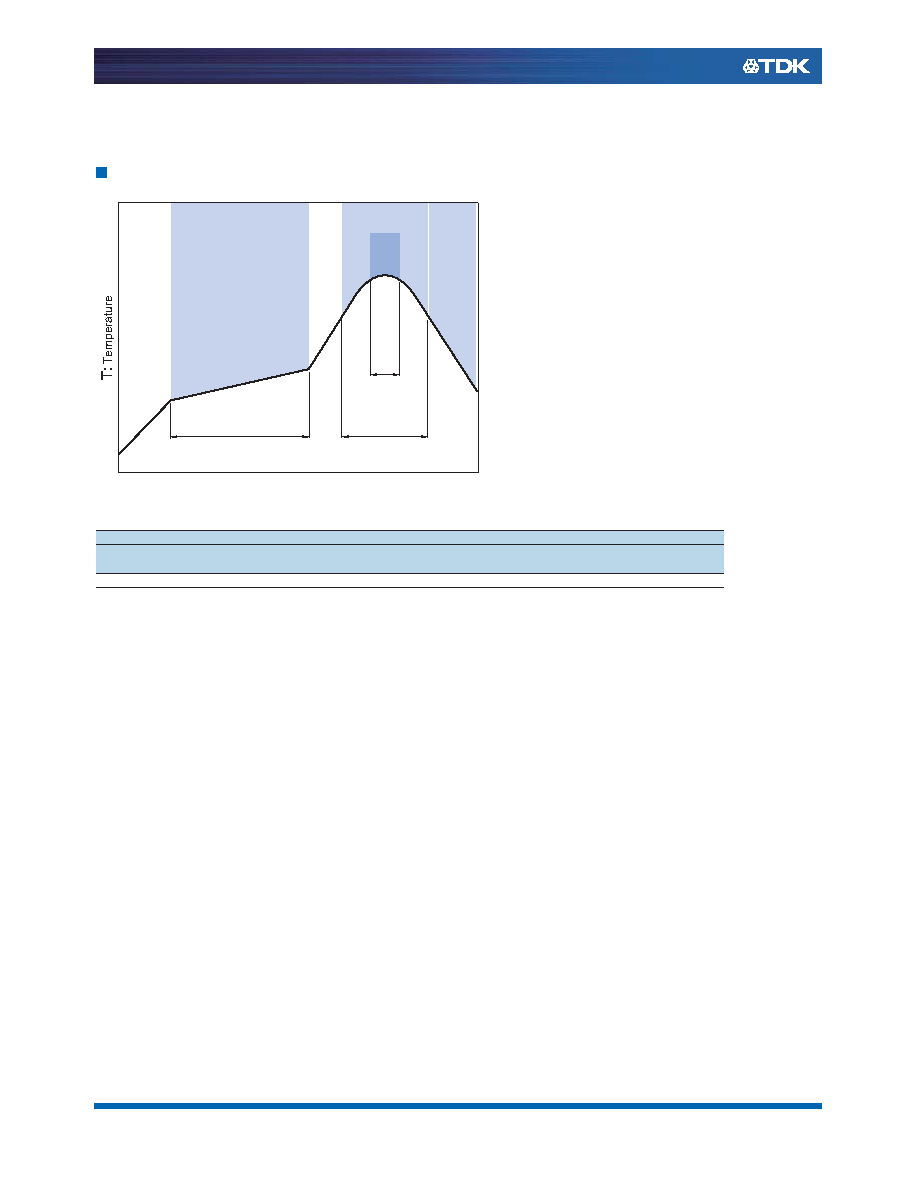

RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Peak
Temp.
Time
Temp.
Time
Temp.
Time
T1
T2
t1
T3
t2
T4
t3
150°C
180°C
60 to 120s
230°C
30 to 60s
250 to 260°C
10s max.
Natural
cooling
t3
t1
Preheating
t2
Soldering
T3
T3
T4
T2
T1
t: Time
Peak
