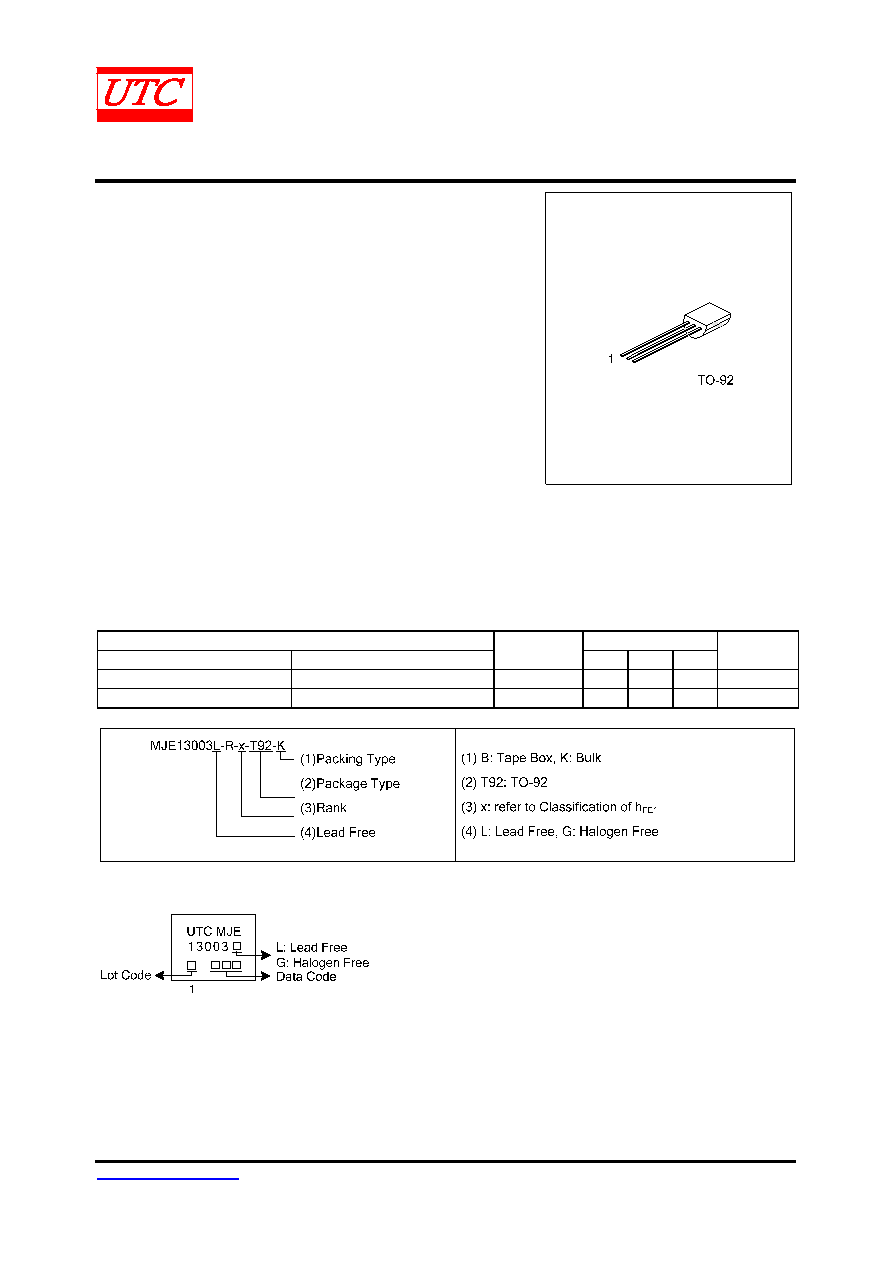

UNISONIC TECHNOLOGIES CO., LTD

MJE13003-R

NPN SILICON TRANSISTOR

www.unisonic.com.tw

1 of 8

Copyright © 2014 Unisonic Technologies Co., Ltd

QW-R221-022.A

NPN SILICON POWER

TRANSISTOR



DESCRIPTION

These devices are designed for high-voltage, high-speed

power switching inductive circuits where fall time is critical. They

are particularly suited for 115 and 220V applications in switch

mode.



FEATURES

* Inductive switching matrix 0.5 ~ 1.5 Amp, 25 and 100°C

* 700V blocking capability



APPLICATIONS

* Switching regulator’s, inverters

* Motor controls

* Solenoid/relay drivers

* Deflection circuits



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen-Free

1

2

3

MJE13003L-R-x-T92-B

MJE13003G-R-x-T92-B

TO-92

B

C

E

Tape Box

MJE13003-L-R-x-T92-K

MJE13003G-R-x-T92-K

TO-92

B

C

E

Bulk

Note: Pin assignment: E: Emitter

B: Base

C: Collector



MARKING
