ICPLW50LSMT-R Datasheet(PDF) 12 Page - ISOCOM COMPONENTS

No. de pieza ICPLW50LSMT-R
Descripción Electrónicos  The ICPLW50L 1MBd digital optocoupler consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.
PDF  14 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ISOCOM [ISOCOM COMPONENTS]
Página de inicio  http://www.isocom.com
Logo ISOCOM - ISOCOM COMPONENTS

ICPLW50LSMT-R Datasheet(HTML) 12 Page - ISOCOM COMPONENTS

Back Button ICPLW50LSMT-R Datasheet HTML 6Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 7Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 8Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 9Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 10Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 11Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 12Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 13Page - ISOCOM COMPONENTS ICPLW50LSMT-R Datasheet HTML 14Page - ISOCOM COMPONENTS
Zoom Inzoom in Zoom Outzoom out
 12 / 14 page
background image
12 25/07/2016
ICPLW50L
ISOCOM
COMPONENTS
DC93196

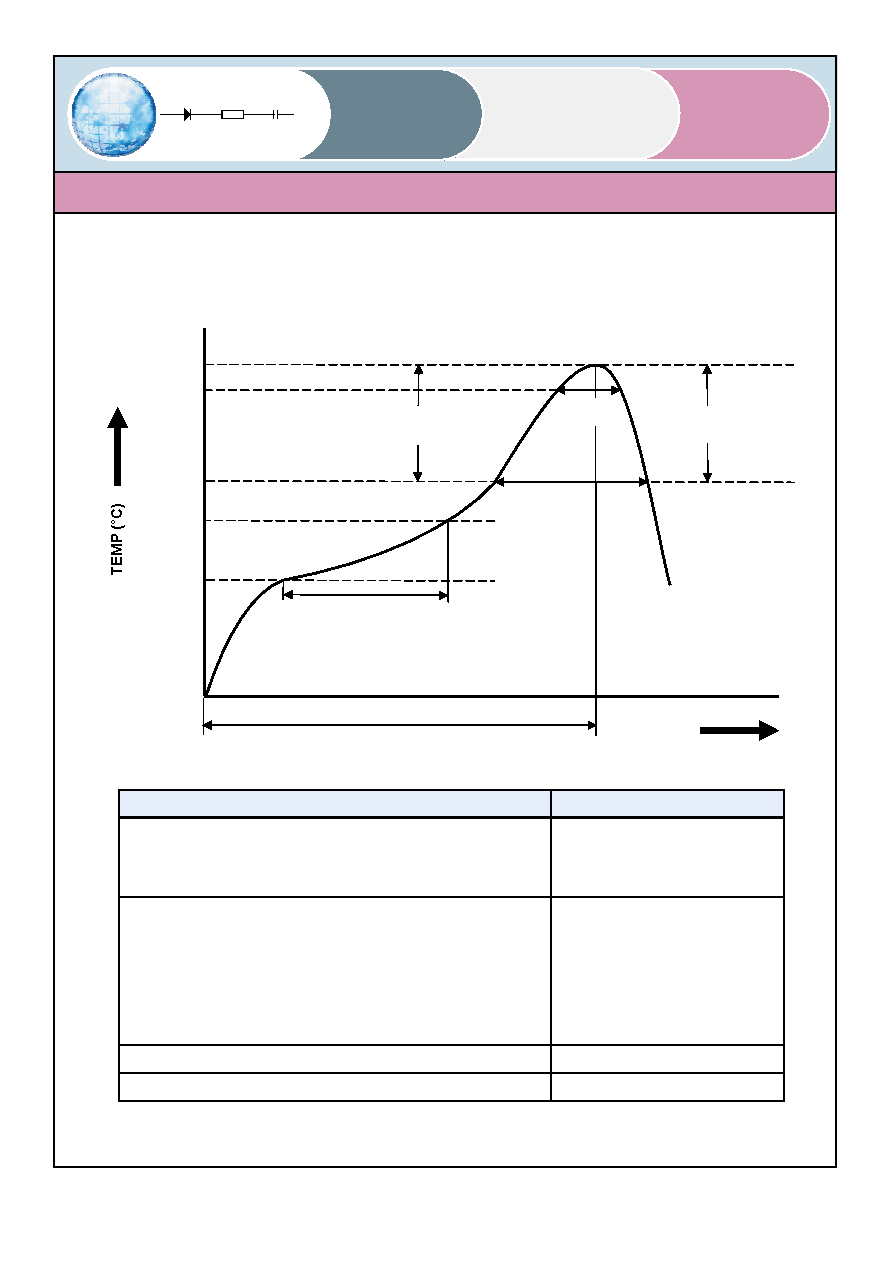

IR REFLOW SOLDERING TEMPERATURE PROFILE
(One Time Reflow Soldering is Recommended)
TIME (s)
25°C
ts Preheat
60s – 120s
Tsmin
Tsmax
260°C
TL
217°C
Time 25°C to Peak Temperature
tP
TP - 5°C
TP
Max Ramp Up Rate
3°C/s
Max Ramp Down Rate
6°C/s
TL
200°C
150°C
Profile Details
Conditions
Preheat
- Min Temperature (TSMIN)
- Max Temperature (TSMAX)
- Time TSMIN to TSMAX (ts)
150°C
200°C
60s - 120s
Soldering Zone
- Peak Temperature (TP)
- Time at Peak Temperature
- Liquidous Temperature (TL)
- Time within 5°C of Actual Peak Temperature (TP ̶ 5°C)
- Time maintained above TL (tL)
- Ramp Up Rate (TL to TP)
- Ramp Down Rate (TP to TL)
260°C
10s max
217°C
30s max
60s - 100s
3°C/s max
6°C/s max
Average Ramp Up Rate (Tsmax to TP)
3°C/s max
Time 25°C to Peak Temperature
8 minutes max
