Digital Controller

E5AK/E5EK

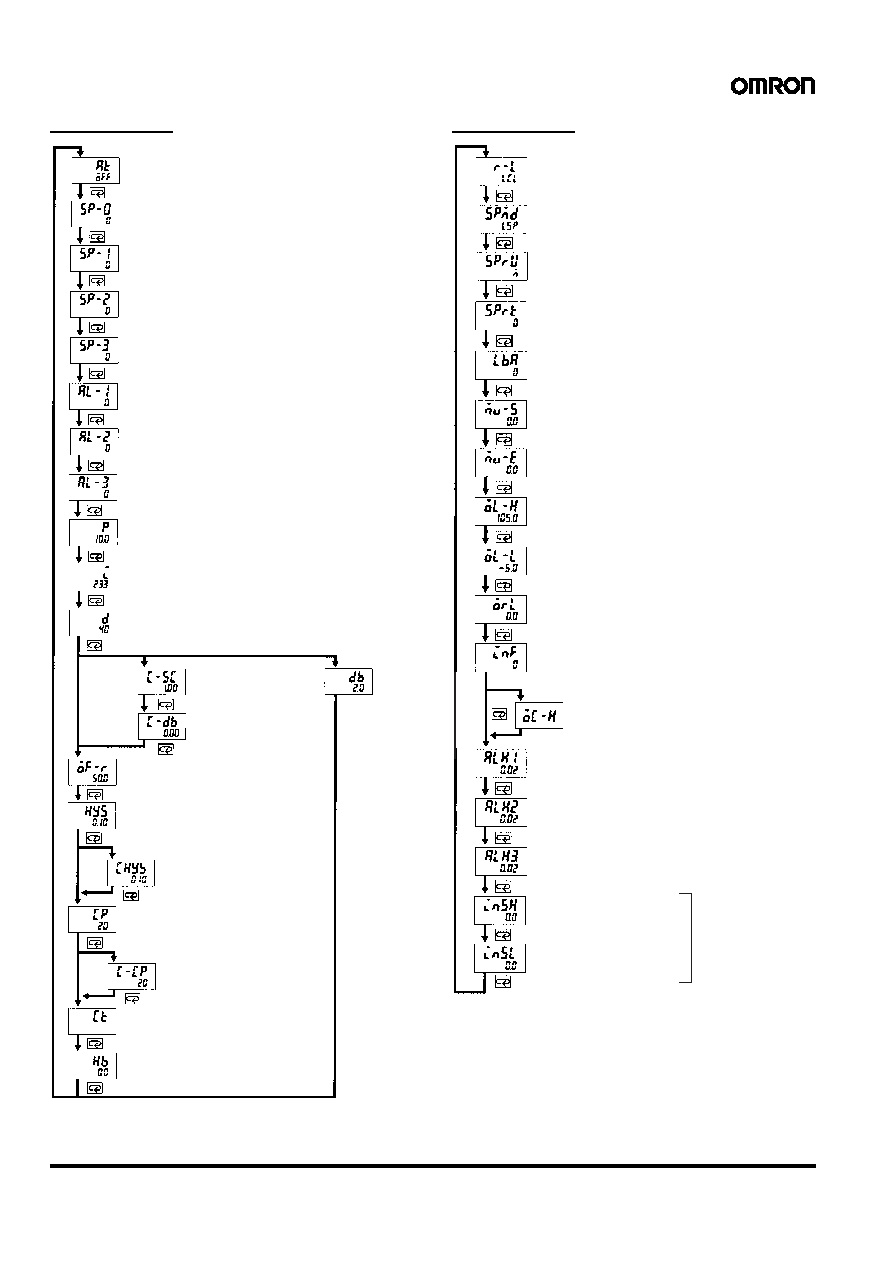

Level 1 Mode

Level 2 Mode

AT Execute/Cancel

For heating/cooling control

For E5

@K-PRR2

For heating/cooling control

Current value

Set Point 0

Used with multi-SP function.

Set Point 1

Used with multi-SP function.

Set Point 2

Used with multi-SP function.

Set Point 3

Used with multi-SP function.

Alarm Value 1

Available only when the alarm output 1 is assigned.

Alarm Value 2

Available only when the alarm output 2 is assigned.

Alarm Value 3

Available only when the alarm output 3 is assigned.

Proportional Band

Available if the Controller is in advanced PID control.

Integral Time

Available if the Controller is in advanced PID control.

Derivative Time

Available if the Controller is in advanced PID control.

Cooling Coefficient

Used with the Controller is in

heating and cooling control.

Dead Band

Used with the Controller is in

heating and cooling control.

Position-

proportional

dead band

Manual Reset Value

Available when the integral time parameter

of the Controller in standard control is "0".

Hysteresis (Heat)

Available when the Controller is in

ON/OFF control.

Hysteresis (Cool)

Available when the Controller is in

ON/OFF control

Control Period (Heat)

Available when the Controller has a relay or

voltage output, or is in advanced PID control.

Control Period (Cool)

Available when the Controller has a relay

or voltage output, or is in advanced PID

control.

Heater Current Monitor

Available when the heater

burnout alarm is assigned.

Heater Burnout Detection

Available when the heater

burnout alarm is assigned.

SP Mode

SP Ramp Time Unit

SP Ramp Set Value

MV at Stop

MV at PV Error

MV Change Rate Limit

Input Digital Filter

(See Input Shift)

For E5

@K-PRR2

Open/Close hysteresis

Remote/Local

Used for the

communications function.

LBA Detection Time

Available when the LBA (loop break

alarm) is assigned as an output.

Unavailable to the E5

@K-PRR2.

MV Upper Limit

Unavailable to the

@K-PRR2.

MV Lower Limit

Unavailable to the

@K-PRR2.

Alarm 1 Hysteresis

Available only when the alarm

output 1 is assigned.

Alarm 2 Hysteresis

Available only when the alarm

output 2 is assigned.

Alarm 3 Hysteresis

Available only when the alarm

output 3 is assigned.

Input Shift Upper Limit

Available if the input type is a

thermocouple or platinum resistance

thermometer.

Input Shift Lower Limit

Available if the input type is a

thermocouple or platinum resistance

thermometer.
