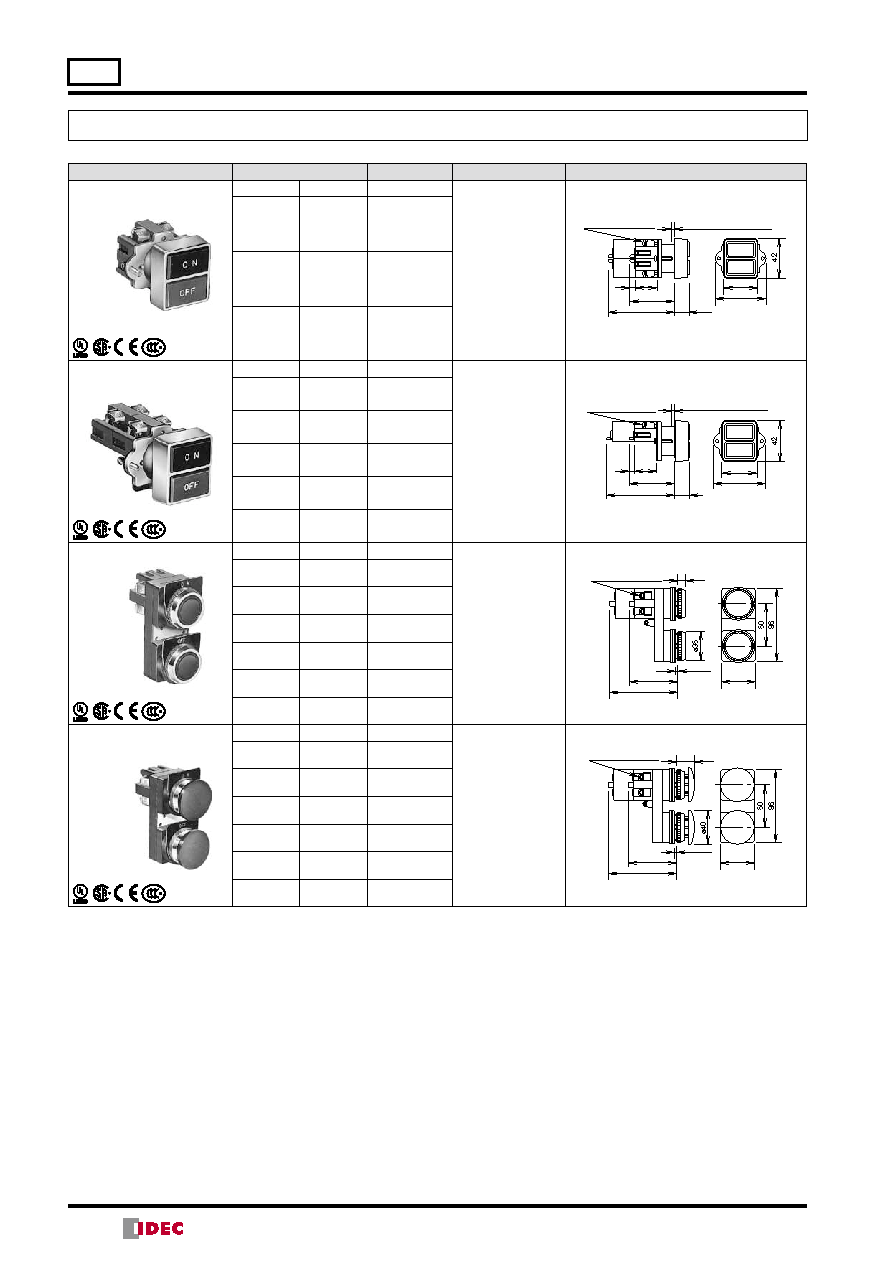

Square Twin / Twin Maintained Pushbuttons

Package Quantity: 1

Shape

Contact

Part No.

Button Color

Dimensions (mm)

Square Twin (Momentary)

UWQN1

ON

OFF

ON: Black

OFF: Red

O N

OFF

M3.5 Terminal Screw

6

23

Panel Thickness 0.8 to 13

47 (1 or

2 blocks)

70 (3 or 4 blocks)

15.5

53

36

1NO

1NO

UWQN11010

1NO

1NC

UWQN11001

2NO

2NC

UWQN12002

Square Twin (Maintained)

UWQN2

ON

OFF

ON: Black

OFF: Red

O N

OFF

M3.5 Terminal Screw

6

23

Panel Thickness 0.8 to 13

47 (1 block)

70 (2 blocks)

15.5

53

36

1NO

–

UWQN21000

1NC

–

UWQN20100

1NO-1NC

–

UWQN21100

2NO

–

UWQN22000

2NC

–

UWQN20200

Flush Twin Maintained

ABBN11

Top

Bottom

Black (B), green (G),

and red (R) buttons

are supplied with

each unit.

0.8 to 7.5

M3.5 Terminal Screw

Panel

Thickness

57

80

40

9

1NO

–

ABBN1110

1NC

–

ABBN1101

1NO-1NC

–

ABBN1111

2NO

–

ABBN1120

2NC

–

ABBN1102

2NO-2NC

–

ABBN1122

Mushroom Twin Maintained

(Without buttons)

ABBN33

Top

Bottom

M3.5 Terminal Screw

Panel

Thickness

0.8 to 7.5

57

80

40

21

1NO

–

ABBN3310

1NC

–

ABBN3301

1NO-1NC

–

ABBN3311

2NO

–

ABBN3320

2NC

–

ABBN3302

2NO-2NC

–

ABBN3322

•Round bezel (metal): Chrome-plated

•Other contact arrangements and gold-plated silver contacts are also available. See page 20.

•

Square Twin (Momentary): Two independent momentary switches are contained in one unit, each operated by ON or OFF button. With

the ø30 adapter removed from the sleeve, the unit can mount in a ø25.5mm mounting hole for the ø25 series.

•

Square Twin (Maintained): The contact operates when ON button is pressed and is maintained in the depressed position. The button is

reset by pressing the OFF button.

•

Twin Maintained: The contact operates when the top button is pressed and is maintained in the depressed position. The button is reset by

pressing the bottom button.

Different combinations of flush, extended HW9Z-A30 buttons, and colors are available (ABN1B-*, ABN2B-*). See page 73.

Mushroom buttons for the ABBN33 are ordered separately. Specify the color code (ABN3B-*). See page 73.

(nameplate sold

separately)

(nameplate sold

separately)

(nameplate sold

separately)

(nameplate sold

separately)
