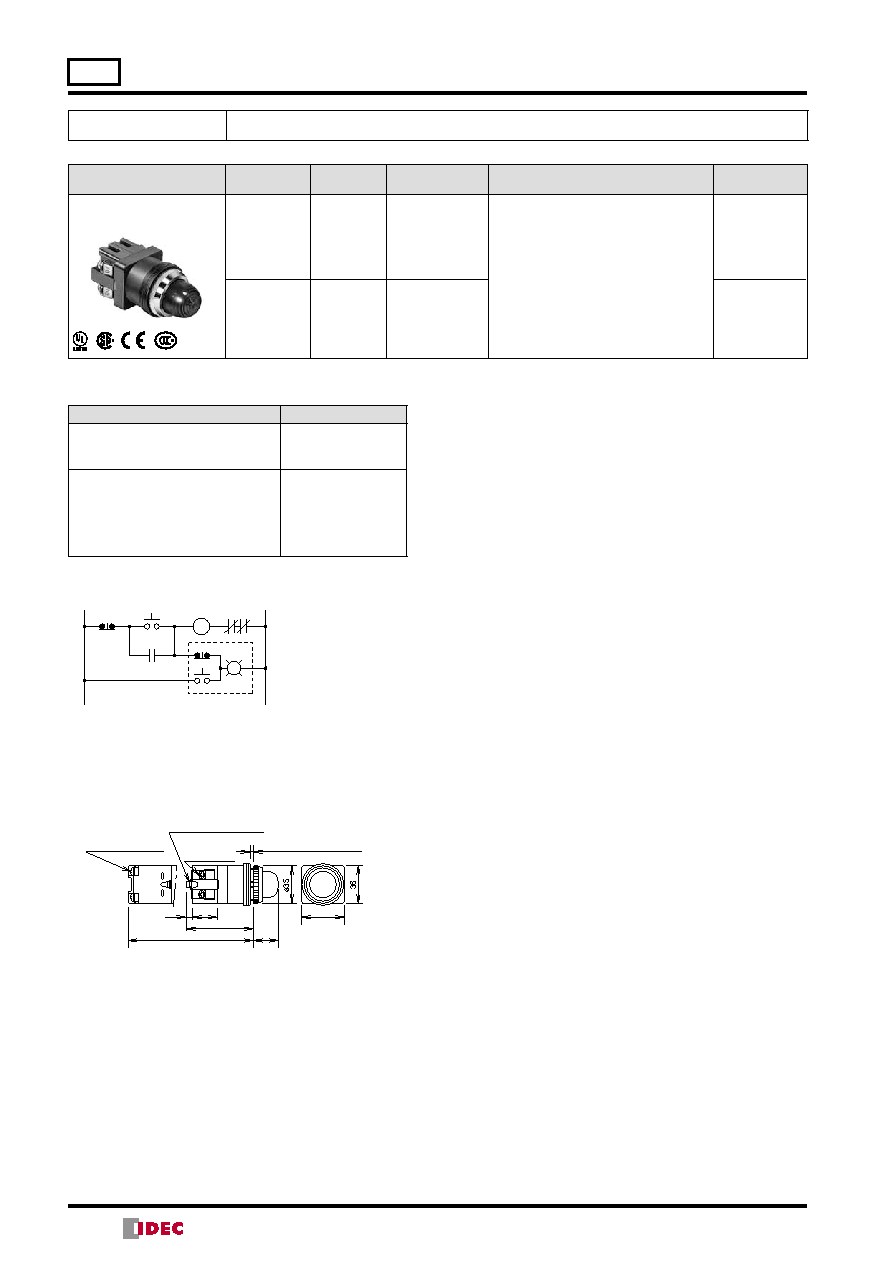

background image
30
ø30 ø30 Series Pilot Lights
Incandescent
Push-to-Check Pilot Lights (1W)
Package Quantity: 1
Shape
Lamp
Lamp Recep-
tacle
Part No.
➁ Lens/LED Color Code
Applicable Lamp
Push-to-Check
APN1*P
Without Lamp
BA9S
APN199P➁
C:
clear
G:
green
O:
orange
R:
red
S:
blue
W:
white
See page 75 for
lamps.
Incandescent
BA9S
APN1➂P➁
LS-*
Operating Voltage Code
Specify an operating voltage code in place of ➂ in the Part No.
➂ Operating Voltage Code
Input
66: 6V AC/DC
88: 12V AC/DC
33: 24V AC/DC
Full voltage
16: 100/110V AC
126: 120V AC
26: 200/220V AC
246: 240V AC
386: 380V AC
46: 400/440V AC
486: 480V AC
Transformer
Circuit Example
Dimensions
M
L
STOP
START
OLS
Push-to-Check
Pilot Light
M
Note: The lamp of the push-to-check pilot light is not connected to the contact
terminal. To connect, refer to the diagram on the left.
M3 Lamp Terminal Screw
M3.5 Terminal Screw
M3.5 Terminal
Screw
40
6 23
B: 96.5
23.5
A: 62.5
Panel Thickness 0.8 to 7.5
All dimensions in mm.
Push-to-Check
APN1*P
A: Full voltage
B: Transformer
(14/03/18)
