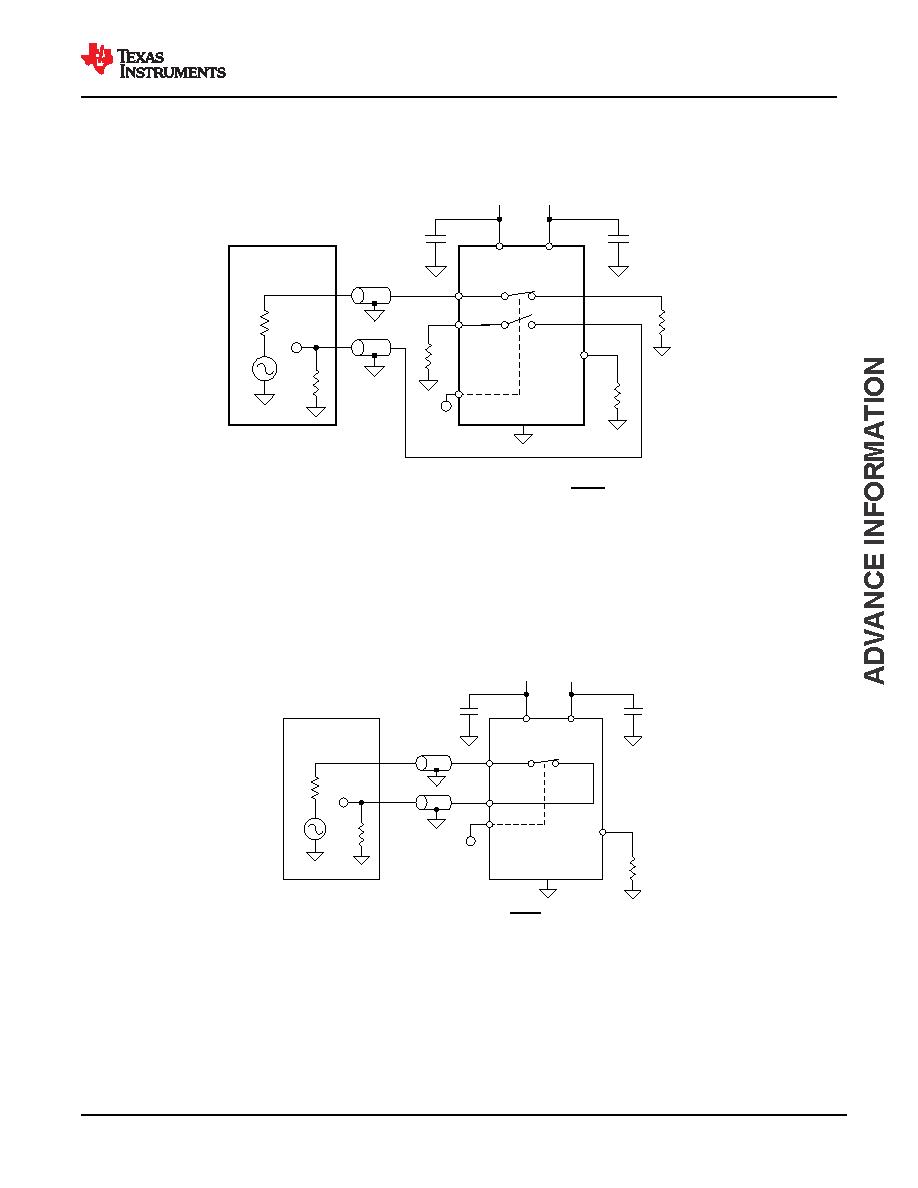

8.10 Inter-Channel Crosstalk
Figure 8-10 shows how the inter-channel crosstalk (XTALK(INTER)) measures the voltage at the source pin (Sx) of
an on-switch input when a 1-VRMS signal is applied at the source pin of an on-switch input in a different channel.
+JPAN F ?D=JJAH %NKOOP=HG = 20 × .KC
8176
85
INx
GND
VINx
SX
VS
VOUT
RS
50Ÿ
Network Analyzer
VDD
VSS
VDD
VSS
GND
0.1 µF
GND
0.1 µF
50Ÿ
50Ÿ
50Ÿ
Other
Sx/ Dx
pins
SW
SW
DX
SY
DY
Figure 8-10. Inter-Channel Crosstalk Measurement Setup
8.11 Bandwidth
Bandwidth (BW) is defined as the range of frequencies that are attenuated by < 3 dB when the input is applied to
the source pin (Sx) of an on-channel, and the output is measured at the drain pin (Dx) of the device. Figure 8-11
shows the setup used to measure bandwidth of the switch.
$=J@SE@PD = 20 × .KC
8176
85
SELx
GND
VSELx
SX
Dx
VS
VOUT
RS
50Ÿ
Network Analyzer
VDD
VSS
VDD
VSS
GND
0.1 µF
GND
0.1 µF
SW
50Ÿ
Other
Sx/ Dx
pins
Figure 8-11. Bandwidth Measurement Setup
www.ti.com
TMUX7411F, TMUX7412F, TMUX7413F
SCDS404 – MARCH 2021
Copyright © 2021 Texas Instruments Incorporated
Submit Document Feedback
21
Product Folder Links: TMUX7411F TMUX7412F TMUX7413F
