Data Sheet
ADL6331
SPECIFICATIONS
analog.com
Rev. B | 9 of 54
Table 3. SPI Timing Specifications (Continued)
Parameter
Description
Min
Typ
Max
Unit
tDS
Setup time between data and rising edge of SCLK
10
ns
tDH
Hold time between data and rising edge of SCLK
5
ns
tDCS
Setup time between falling edge of CSB and SCLK
10
ns
tDV
Maximum time delay between falling edge of SCLK and output data valid for a read operation
10
ns

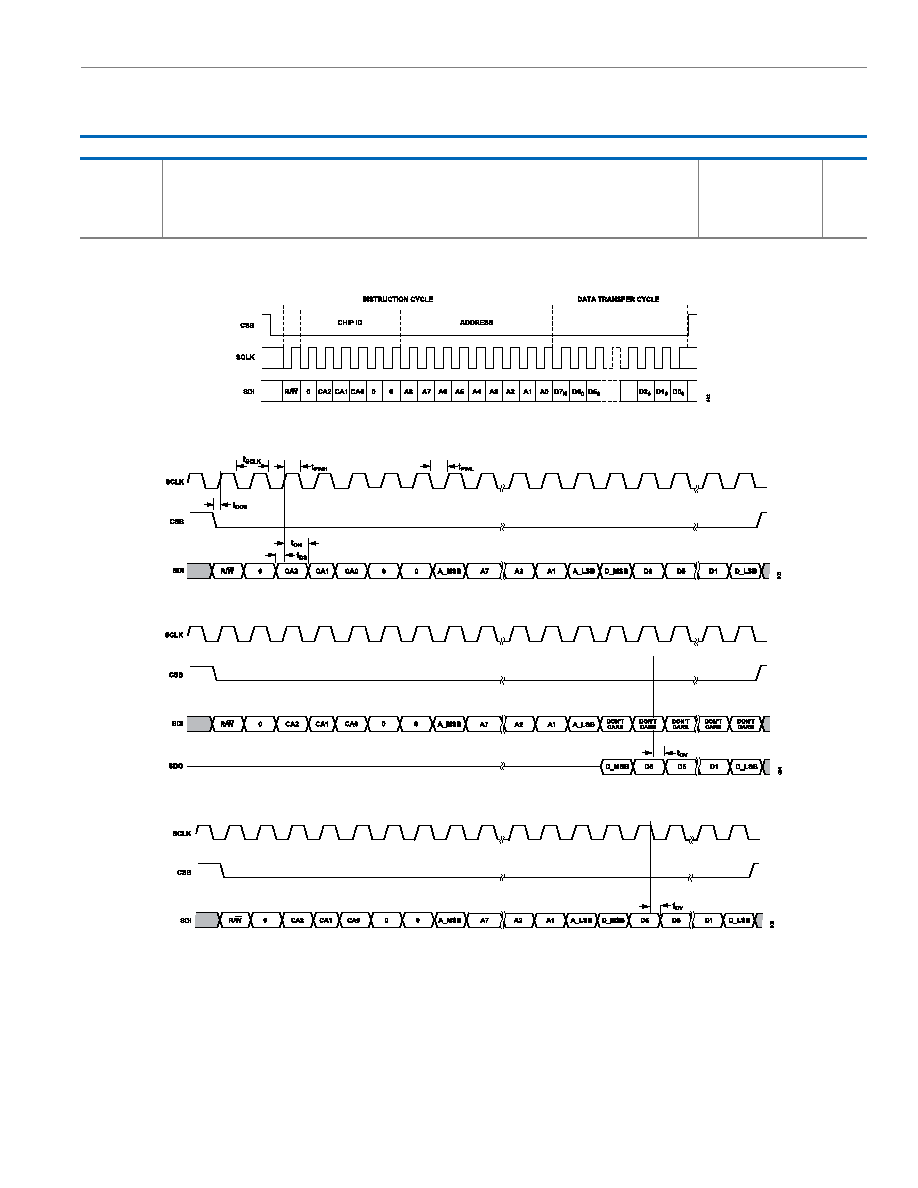

SPI Timing Diagrams
Figure 2. SPI Register Timing, MSB First
Figure 3. Timing Diagram for the SPI Register Write (3- and 4-Wire SPI Mode)
Figure 4. Timing Diagram for SPI Register Read (4-Wire SPI Mode)
Figure 5. Timing Diagram for SPI Register Read (3-Wire SPI Mode, SDIO Pin Is Bidirectional Mode, Input (Write) and Output (Read))
