Data Sheet
ADL6331
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 12 of 54
V33AMP1 = V33AMP1A = V33AMP2= V33AMP2A = V33FUSE = 3.3 V, and TA = 25°C, unless otherwise noted.

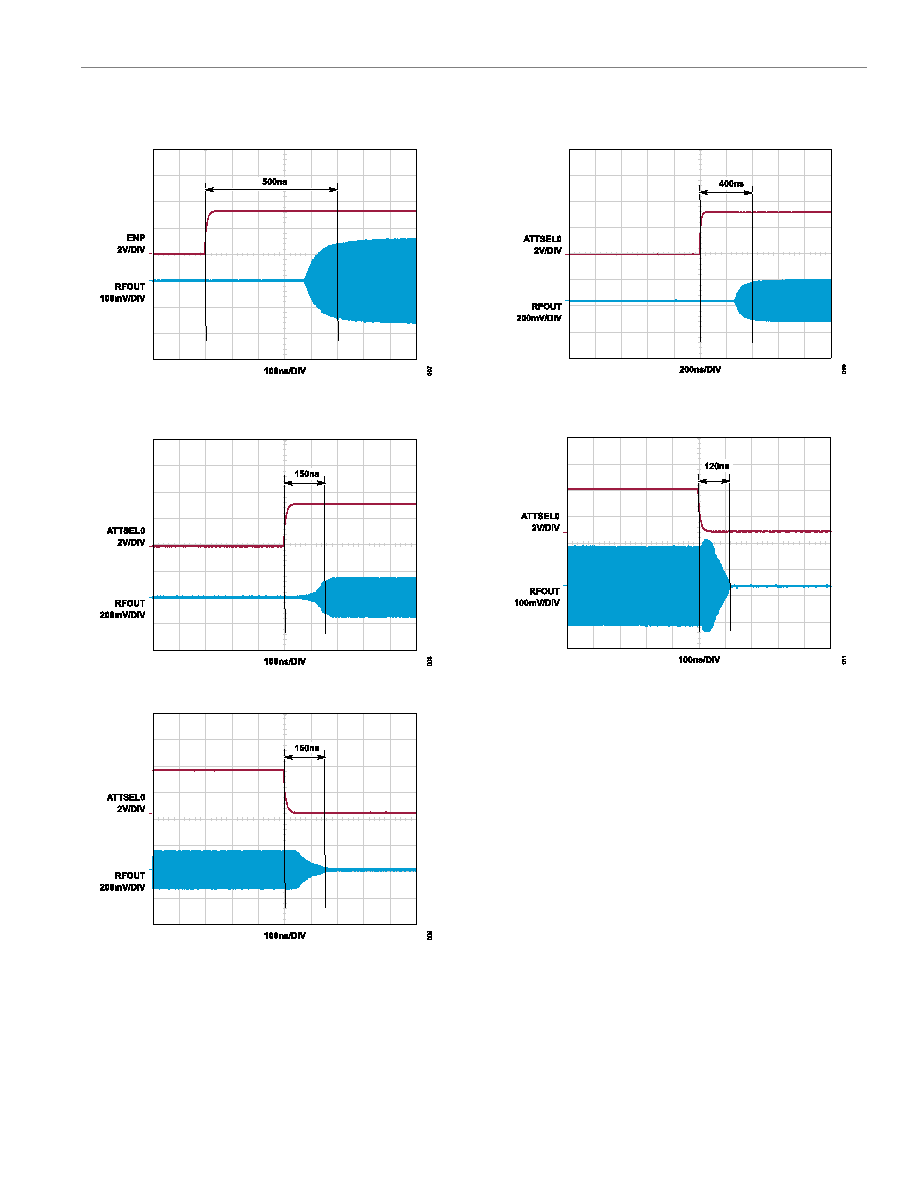

Figure 7. ENP Enable Response at Fixed Gain Mode, Minimum DSA
Attenuation
Figure 8. Gain Settling Time at Fixed Gain Mode, DSA from 24.0 dB to 0.0 dB
Figure 9. Gain Settling Time at Fixed Gain Mode, DSA from 0.0 dB to 24.0 dB
Figure 10. Gain Settling Time from Minimum Gain (AMP1/AMP2 Bypass and
DSA = 24.0 dB) to Maximum Gain (No AMP Bypass and DSA = 0.0 dB)
Figure 11. Gain Settling Time from Maximum Gain (NO AMP Bypass and DSA
= 0.0 dB) to Minimum Gain (AMP1/AMP2 Bypass and DSA = 24.0 dB)
