ADRF6603

Rev. 0 | Page 9 of 24

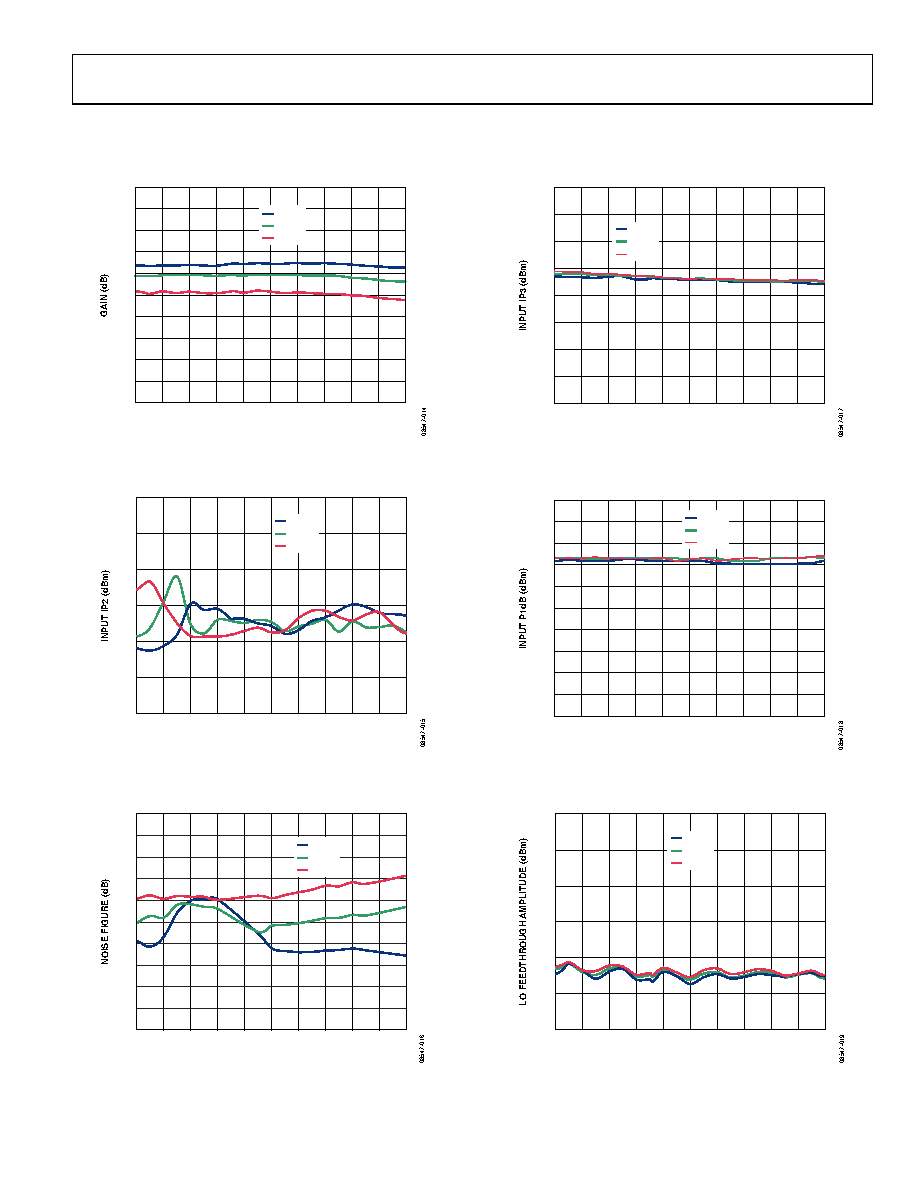

TYPICAL PERFORMANCE CHARACTERISTICS

CDAC = 0x1, IP3SET = 3.3 V, internally generated LO, RFIN = −10 dBm, fIF = 140 MHz, unless otherwise noted.

–5

–4

–3

–2

–1

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 4. Gain vs. LO Frequency

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 5. IIP2 vs. LO Frequency, RFIN = −5 dBm

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 6. Noise Figure vs. LO Frequency

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 7. IIP3 vs. LO Frequency, RFIN = −5 dBm

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 8. IP1dB vs. LO Frequency

2100 2150 2200 2250 2300 2350 2400 2450 2500 2550 2600

–60

–50

–40

–30

–20

–10

LO FREQUENCY (MHz)

+25°C

+85°C

–40°C

Figure 9. LO Feedthrough to IF vs. LO Frequency, LO Output Turned Off
