ADRF6603
Rev. 0 | Page 10 of 24
Phase noise measurements made at IF output, unless otherwise noted.
1kHz OFFSET
100kHz OFFSET
1MHz OFFSET
10MHz OFFSET
INTERGRATED PHASE NOISE
10kHz OFFSET
–160
–150
–140
–130
–120
–110
–100
–90
–80
LO FREQUENCY (MHz)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2100
2200
2300
2400
2500
2600

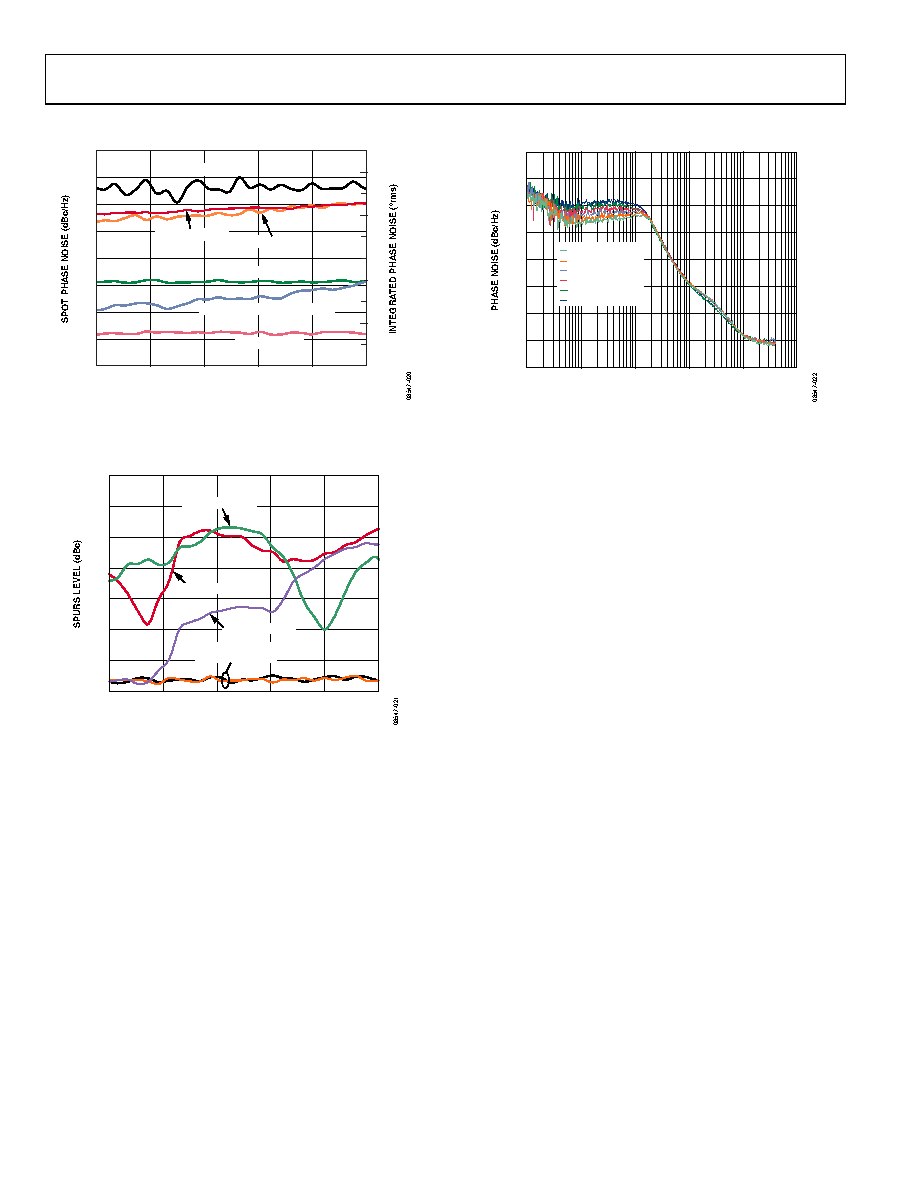

Figure 10. PLL Spot Phase Noise at Various Offsets
and Integrated Phase Noise vs. LO Frequency
–110
–105
–100
–95
–90
–85
–80
–75
LO FREQUENCY (MHz)
2100
2200
2300
2400
2500
2600
1× PFD OFFSET
2× PFD OFFSET
4× PFD OFFSET
0.25× AND
0.5× PFD OFFSET
Figure 11. PLL Reference Spurs vs. LO Frequency
–160
–150
–140
–130
–120
–110
–100
–90
–80
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
LO = 2115.2MHz
LO = 2211.2MHz
LO = 2307.2MHz
LO = 2403.2MHz
LO = 2499.2MHz
LO = 2595.2MHz
Figure 12. Phase Noise vs. Offset Frequency and LO Frequency
(LO Frequency Varies from 2100 MHz to 2600 MHz)
