LT6016/LT6017

1

60167fa

TYPICAL APPLICATION

FEATURES

DESCRIPTION

Dual/Quad 3.2MHz, 0.8V/µs

Low Power, Over-The-Top

Precision Op Amp

APPLICATIONS

L, LT, LTC, LTM, Linear Technology, Over-The-Top and the Linear logo are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

operational amplifiers with input offset voltage trimmed to

less than 50μV. These amplifiers operate on single and split

supplies with a total voltage of 3V to 50V and draw only

315μA per amplifier. They are reverse battery protected,

drawing very little current for reverse supplies up to 50V.

signed to provide added protection in tough environments.

beyond: these amplifiers operate with inputs up to 76V

inputs against transient faults up to 25V below the negative

supply. The LT6016/LT6017 can drive loads up to 25mA

and are unity-gain stable with capacitive loads as large

as 200pF. Optional external compensation can be added

to extend the capacitive drive capability beyond 200pF.

The LT6016 dual op amp is available in an 8-lead MSOP

package. The LT6017 is offered in a 22-pin leadless DFN

package.

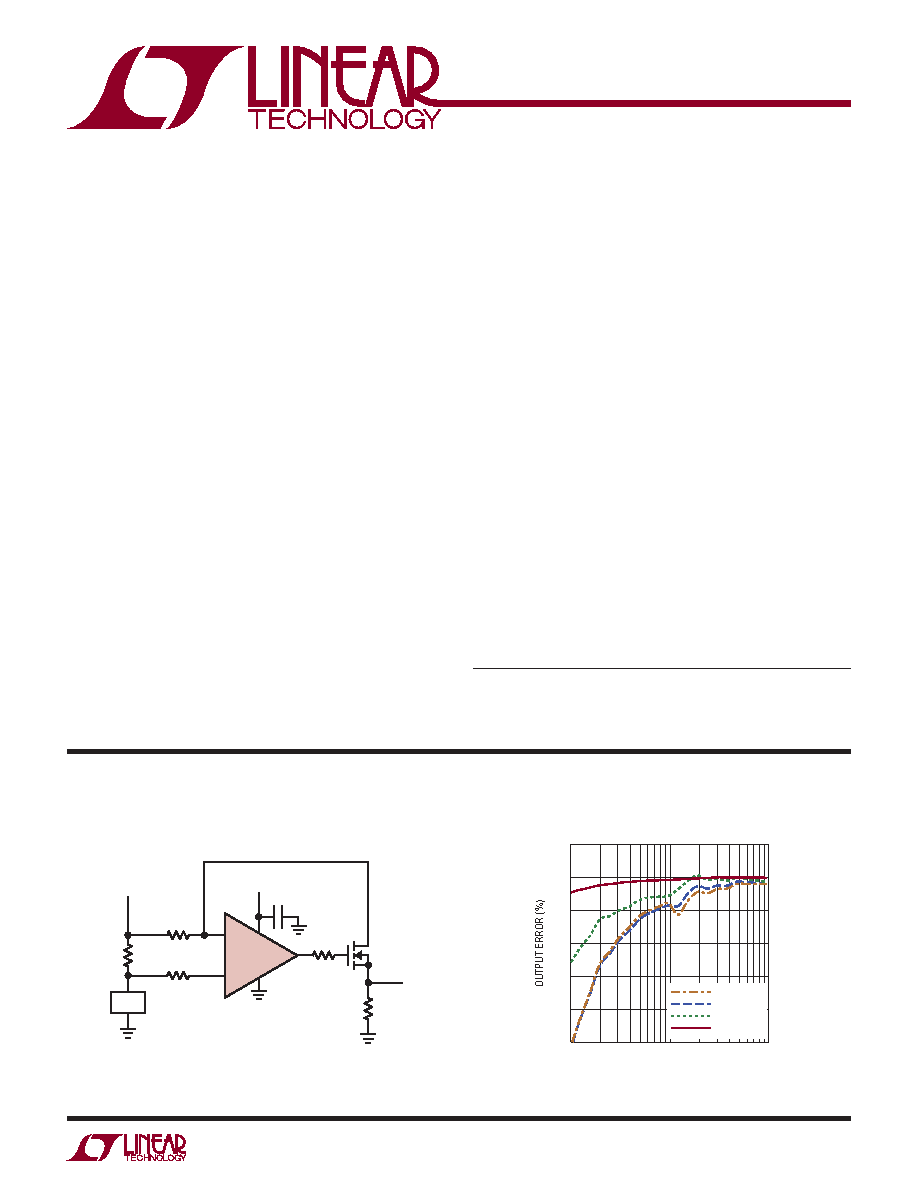

Precision High Voltage High Side Load Current Monitor

Output Error vs Load Current

–

+

LT6016

5V

0.1μF

200Ω

100Ω

1%

200Ω

0.1Ω

10W

BSP89

1V/A

0V TO 1V OUT

60167 TA01a

2k

LOAD

LOAD CURRENT (A)

0.01

–1.0

0

0.2

–0.2

–0.4

–0.6

–0.8

0.1

60167 TA01b

1
