Description

M24C08-W M24C08-R M24C08-F

6/40

DocID023924 Rev 3

Description

The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable

Memory) organized as 1 K × 8 bits.

The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R

can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be

accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range)

or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a

clock frequency of 400 kHz.

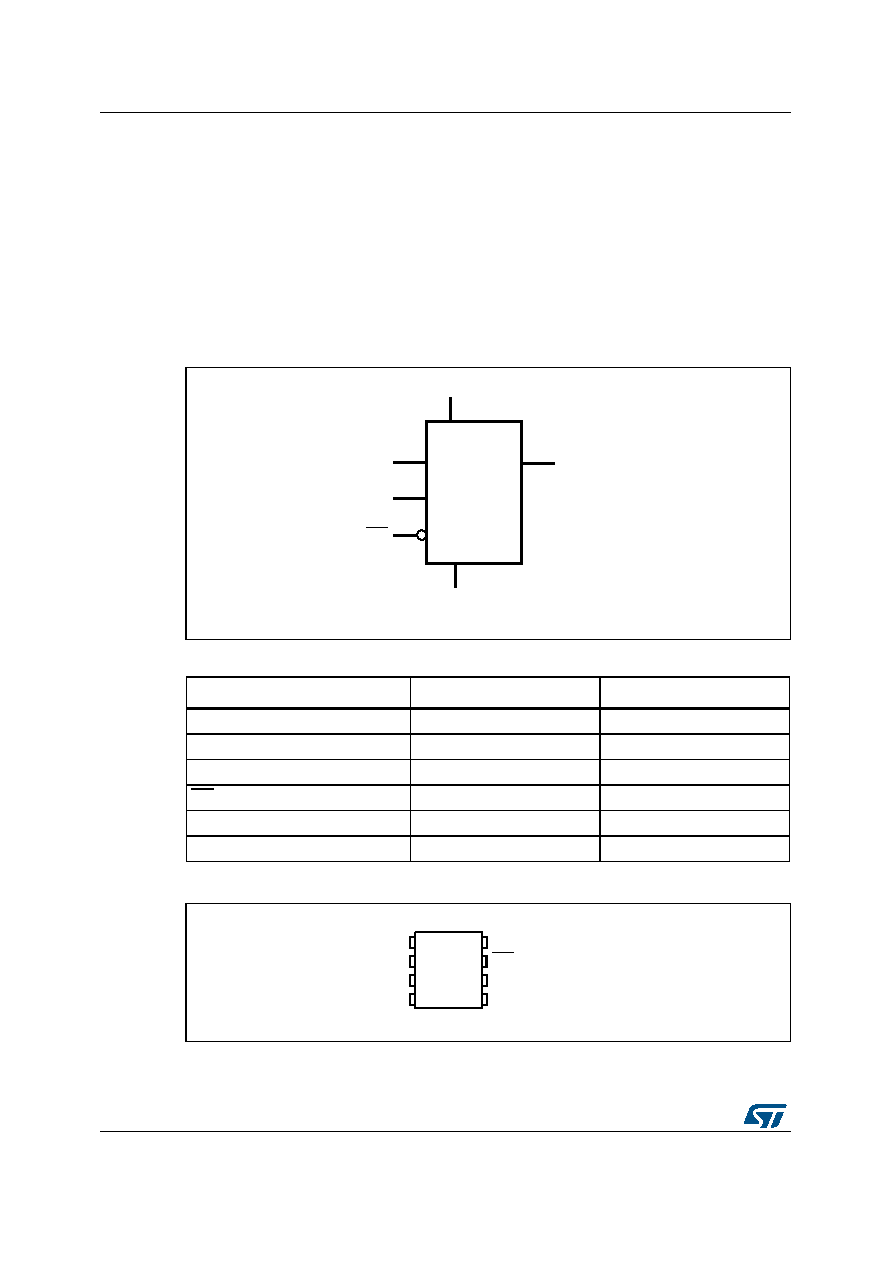

Figure 1. Logic diagram

Figure 2. 8-pin package connections, top view

1. NC: not connected.

2. See Section 9: Package mechanical data for package dimensions, and how to identify pin 1.

Table 1. Signal names

Signal name

Function

Direction

Chip Enable

Input

SDA

Serial Data

I/O

SCL

Serial Clock

Input

Write Control

Input

VCC

Supply voltage

VSS

Ground
