www.ti.com
sin
NCO
cos
IOUTA1
IOUTA2
16-Bit
FIR4
IOUTB1
IOUTB2
x
sin(x)
DA[15:0]
DB[15:0]
DAC
16-Bit
DAC
x
sin(x)
A Gain
B Gain
A
Offset
B
Offset
B0160-01
y2
FIR3
y2
DAC5687
SLWS164E – FEBRUARY 2005 – REVISED SEPTEMBER 2006
Table 1. DAC5687 Modes of Operation (continued)
MODE
FIR1
FIR2
FMIX
QMC
FIR3
CMIX
X4L FMIX
ON
–
ON
–
ON
–
X4L QMC
ON
–
–
ON
ON
–
X4L FMIX QMC
ON
–
ON
ON
ON
–
X4L CMIX
ON
–
–
–
ON
ON
X4L FMIX CMIX
ON
–
ON
ON
ON
X4L QMC CMIX
ON
–
–
ON(2)
ON
ON
X4L FMIX QMC CMIX
ON
–
ON
ON(2)
ON
ON
X8
ON
ON
–
–
ON
–
X8 FMIX
ON
ON
ON
–
ON
–
X8 QMC
ON
ON
–
ON
ON
–
X8 FMIX QMC
ON
ON
ON
ON
ON
–
X8 CMIX
ON
ON
–
–
ON
ON
X8 FMIX CMIX
ON
ON
ON
–
ON
ON
X8 QMC CMIX
ON
ON
–
ON(1)
ON
ON
X8 FMIX QMC CMIX
ON
ON
ON
ON(1)
ON
ON

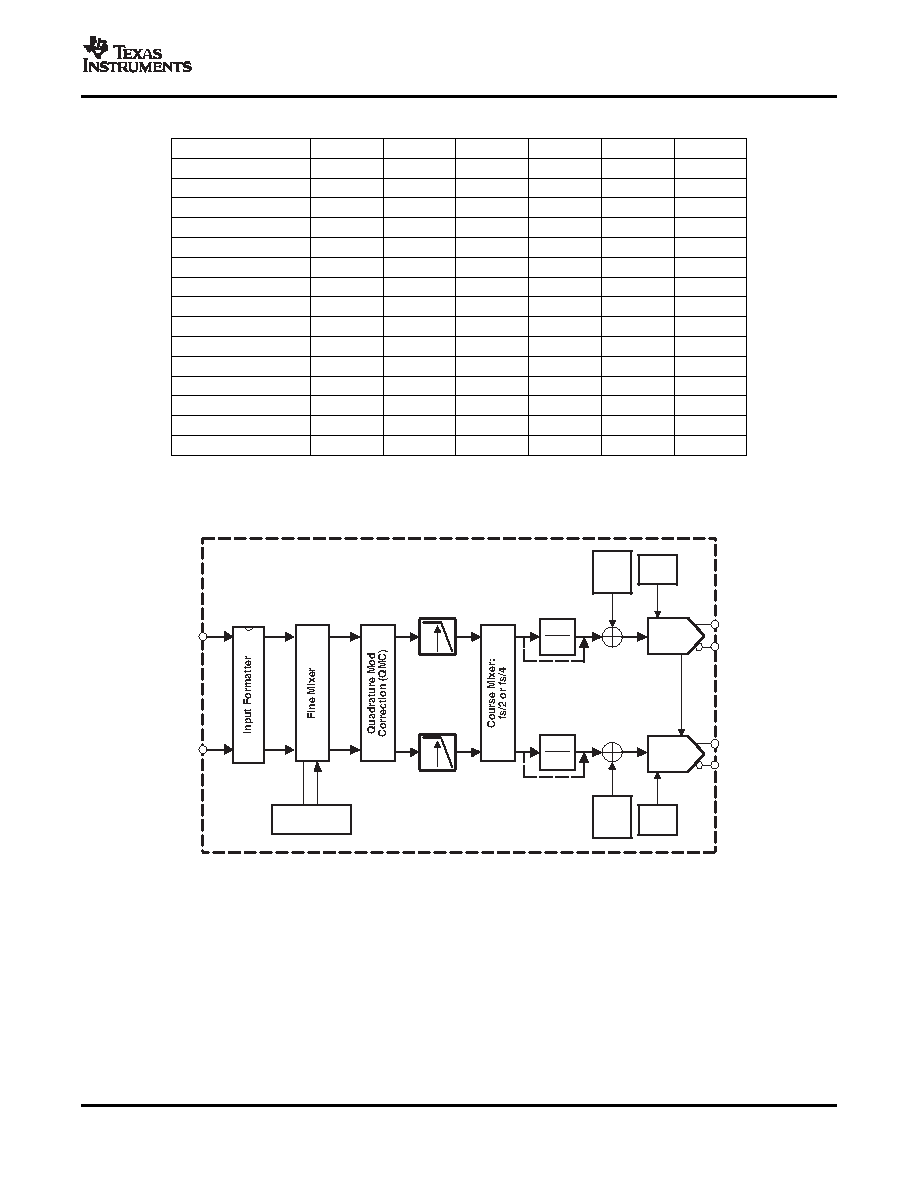

Figure 29. Block Diagram for X2 Mode
Copyright © 2005–2006, Texas Instruments Incorporated
Submit Documentation Feedback
21
Product Folder Link(s): DAC5687
