RT8800AGQV Datasheet(PDF) 8 Page - Richtek Technology Corporation

No. de pieza RT8800AGQV
Descripción Electrónicos  General Purpose 3-Phase PWM Controller for High-Density Power Supply
PDF  21 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  RICHTEK [Richtek Technology Corporation]
Página de inicio  http://www.richtek.com
Logo RICHTEK - Richtek Technology Corporation

RT8800AGQV Datasheet(HTML) 8 Page - Richtek Technology Corporation

Back Button RT8800AGQV Datasheet HTML 4Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 5Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 6Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 7Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 8Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 9Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 10Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 11Page - Richtek Technology Corporation RT8800AGQV Datasheet HTML 12Page - Richtek Technology Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 8 / 21 page
background image
RT8800A
8
DS8800A-04 August 2007
www.richtek.com
All brand name or trademark belong to their owner respectively
Time (25
μs/Div)

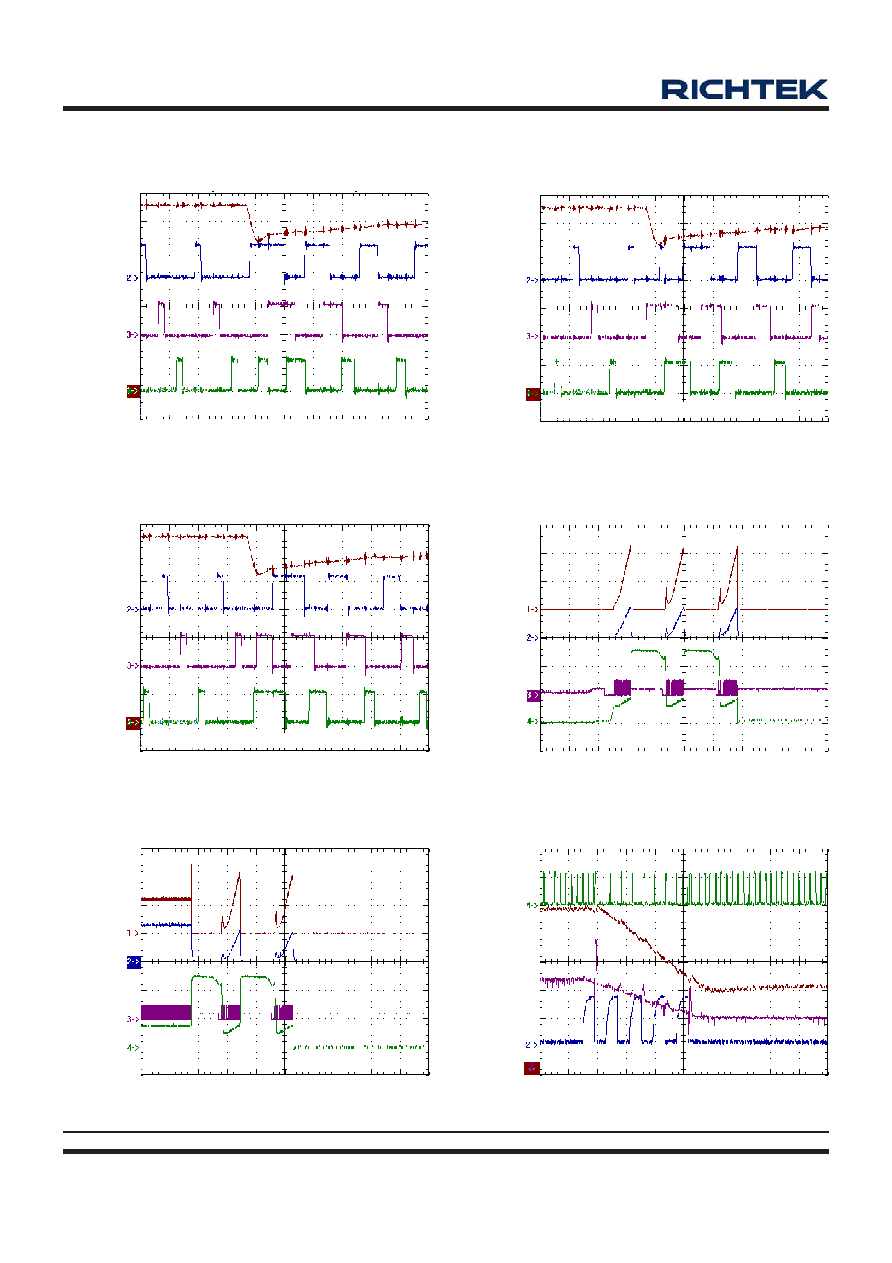

VID On the Fly Falling
VFB
(200mV/Div)
VID0
(2V/Div)
PWM
(5V/Div)
VCORE
(100mV/Div)
IOUT = 5A
Time (2.5
μs/Div)
Load Transient Response
UGATE1
(20V/Div)
VCORE
(200mV/Div)
UGATE2
(20V/Div)
UGATE3
(20V/Div)
phase 1, IOUT = 5A to 85A @SR = 93A/us)
Time (2.5
μs/Div)
Load Transient Response
UGATE1
(20V/Div)
VCORE
(200mV/Div)
UGATE2
(20V/Div)
UGATE3
(20V/Div)
phase 3, IOUT = 5A to 85A @SR = 93A/us)
Time (10ms/Div)
Over Current Protection
IL1+IL2
(50A/Div)
VCORE
(1V/Div)
PWM1
(10V/Div)
VCOMP
(2V/Div)
Short While Turn_On
Time (10ms/Div)
Over Current Protection
IL1+IL2
(50A/Div)
VCOMP
(2V/Div)
PWM1
(10V/Div)
VCORE
(1V/Div)
Short After Turn_On
Time (2.5
μs/Div)
Load Transient Response
UGATE1
(20V/Div)
VCORE
(200mV/Div)
UGATE2
(20V/Div)
UGATE3
(20V/Div)
phase2, IOUT = 5A to 85A @SR = 93A/us)
