RT8800A
15
DS8800A-04 August 2007
www.richtek.com
All brand name or trademark belong to their owner respectively

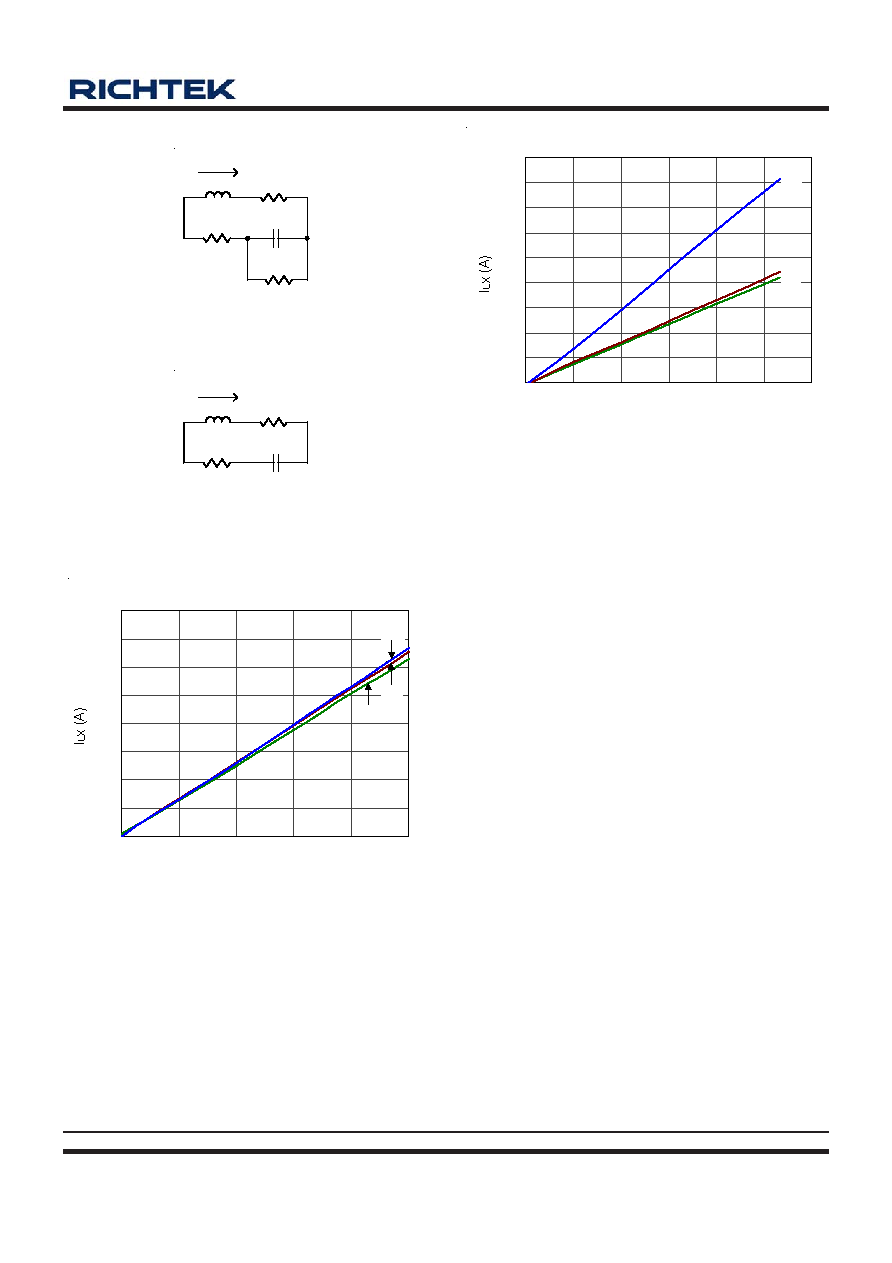

Figure 13. GM4 Setting for current ratio function.
Figure 14. GM1 to GM3 Setting for current ratio
function.
I
L3
1.5uH
1m
3k
1uF
3k
1.5uH
1m
1.5k
1uF
I
L1 to L2
Figure 15
Figure 16
Current Balance Function
0
5
10
15
20
25
30
35
40
0
2040
6080
100
ICORE (A)
IL1
IL2
IL3
Current Ratio Function
0
5
10
15
20
25
30
35
40
45
0
1530
4560
7590
ICORE (A)
IL1
IL2
IL3
