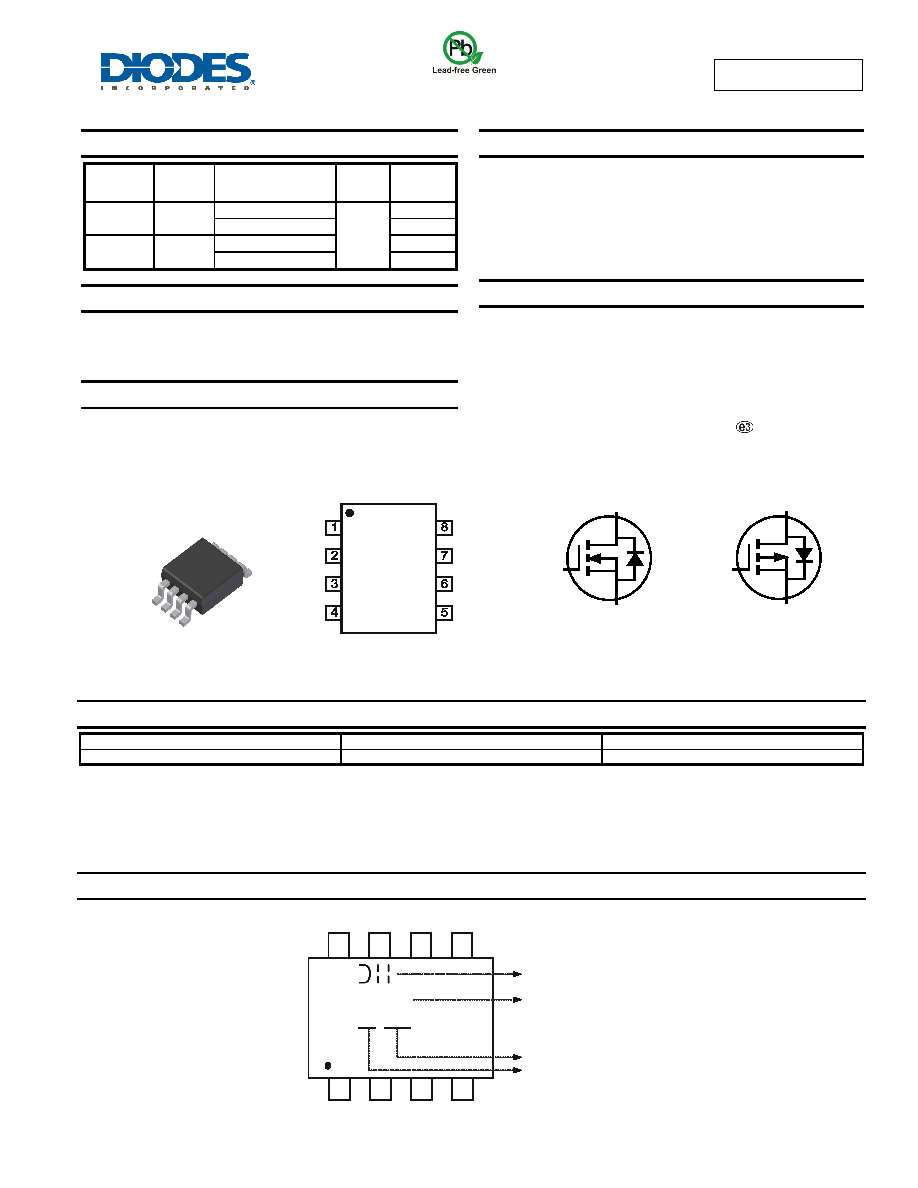

1 / 10 page  DMC3025LSD Document number: DS35717 Rev. 7 - 2 1 of 10 www.diodes.com February 2015 © Diodes Incorporated DMC3025LSD 30V COMPLEMENTARY ENHANCEMENT MODE MOSFET Product Summary Device V(BR)DSS RDS(ON) max Package ID MAX TA = +25°C N-Channel 30V 20m @ VGS = 10V SO-8 8.5A 32m @ VGS = 4.5V 7.0A P-Channel -30V 45m @ VGS = -10V -5.5A 85m @ VGS = -4.5V -4.1A Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Applications • DC Motor Control • DC-AC Inverters Features • Low On-Resistance • Low Input Capacitance • Fast Switching Speed • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • Case: SO-8 • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminal Connections Indicator: See Diagram • Terminals: Finish Matte Tin Annealed Over Copper Leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.008 grams (Approximate) Ordering Information (Note 4) Part Number Case Packaging DMC3025LSD-13 SO-8 2,500/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html Marking Information Pin Configuration S2 D1 D2 G1 D2 D1 G2 S1 Top View SO-8 Equivalent Circuit Top View Logo Part no. Year: “11” = 2011 1 4 8 5 C3025LD YY WW Xth week: 01 ~ 53 Q2 N-CHANNEL MOSFET Q1 P-CHANNEL MOSFET D2 S2 G2 D1 S1 G1 |
