High Accuracy, Ultralow IQ, 200 mA,

SOT-23, anyCAP Low Dropout Regulator

Data Sheet

ADP3330

FEATURES

High accuracy over line and load

±0.7% at +25°C

±1.4% over temperature

Ultralow dropout voltage: 140 mV (typical) at 200 mA

Requires only COUT= 0.47 μF for stability

anyCAP = stable with any type of capacitor, including

multilayer ceramic capacitors (MLCC)

Current and thermal limiting

Low noise

Low shutdown current: <2 µA

2.9 V to 12 V supply range

–40°C to +85°C ambient temperature range

Ultrasmall, thermally enhanced, chip-on-lead™ 6-lead SOT-23

package

APPLICATIONS

Cell phones

Notebook and palmtop computers

Battery-powered systems

PCMCIA regulators

Bar code scanners

Camcorders and cameras

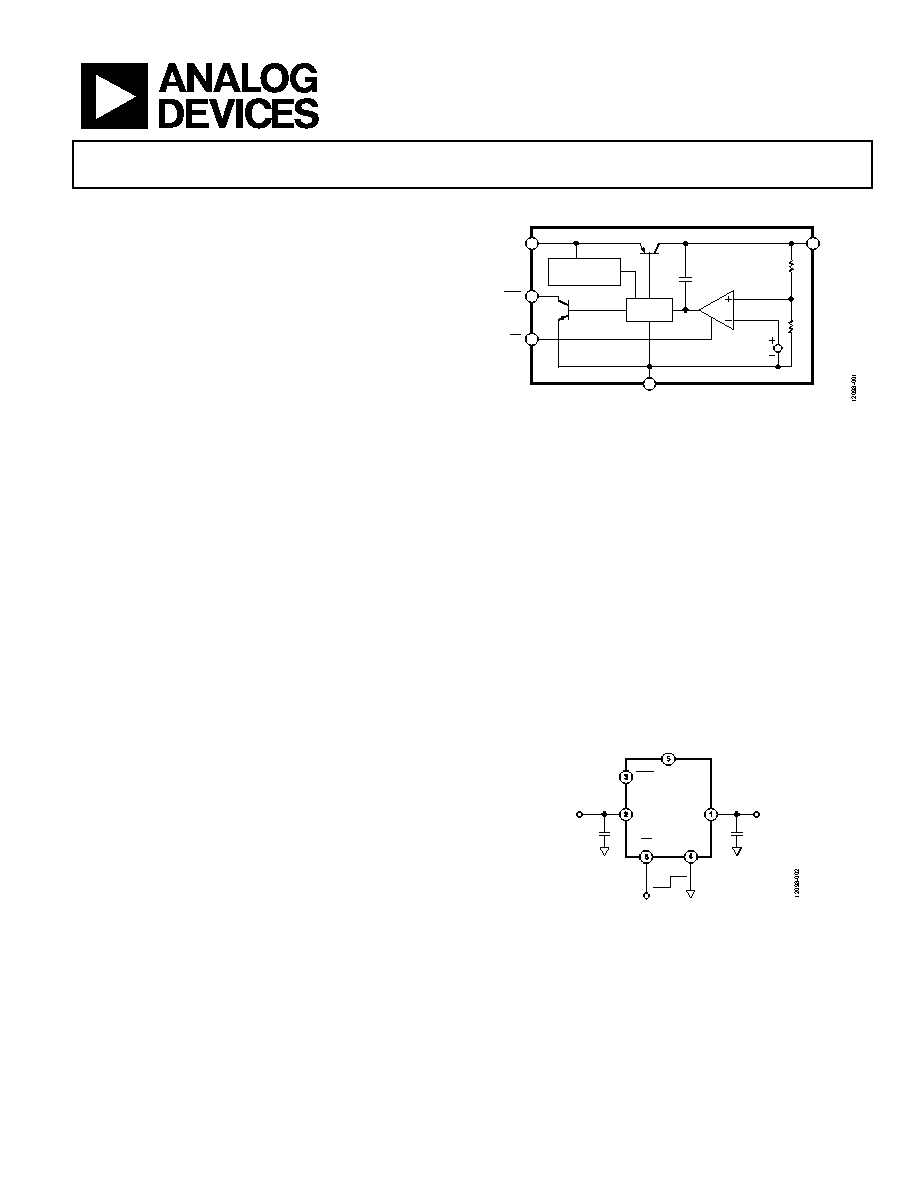

SIMPLIFIED FUNCTIONAL BLOCK DIAGRAM

Figure 1.

GENERAL DESCRIPTION

The ADP3330 is a member of the Analog Devices, Inc., precision

low dropout (LDO) anyCAP® voltage regulator family of products.

The ADP3330 operates with an input voltage range of 2.9 V to

12 V and delivers a load current up to 200 mA. The ADP3330

stands out from the conventional LDOs with a novel architecture

and an enhanced process that enables it to offer performance

advantages and higher output current than its competition. Its

patented design requires only a minimum output capacitor of

0.47 µF for stability. This device is insensitive to output capacitor

equivalent series resistance (ESR), and is stable with any good

quality capacitor, including ceramic (MLCC) types for space

restricted applications. The ADP3330 achieves exceptional

accuracy of ±0.7% at room temperature and ±1.4% over

temperature, line and load variations. The dropout voltage of

the ADP3330 is only 140 mV (typical) at 200 mA. This device also

includes a safety current limit, thermal overload protection, and

a shutdown feature. In shutdown mode, the ground current is

reduced to less than 2 µA. The ADP3330 has an ultralow

ground current 34 µA (typical) in light load situations.

The 6-lead SOT-23 package has been thermally enhanced using

Analog Devices proprietary chip-on-lead feature to maximize

power dissipation.

Figure 2. Typical Application Circuit

GND

THERMAL

PROTECTION

CC

IN

ADP3330

OUT

R1

R2

Q1

SD

BAND GAP

REF

DRIVER

gm

ERR

2

1

6

3

4

VOUT

VIN

+

–

ADP3330

NR

OUT

ON

OFF

GND

IN

CIN

0.47µF

COUT

0.47µF

+

–

ERR

SD

Rev. C

Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

©1999–2015 Analog Devices, Inc. All rights reserved.
