OUTLINE DIMENSIONS

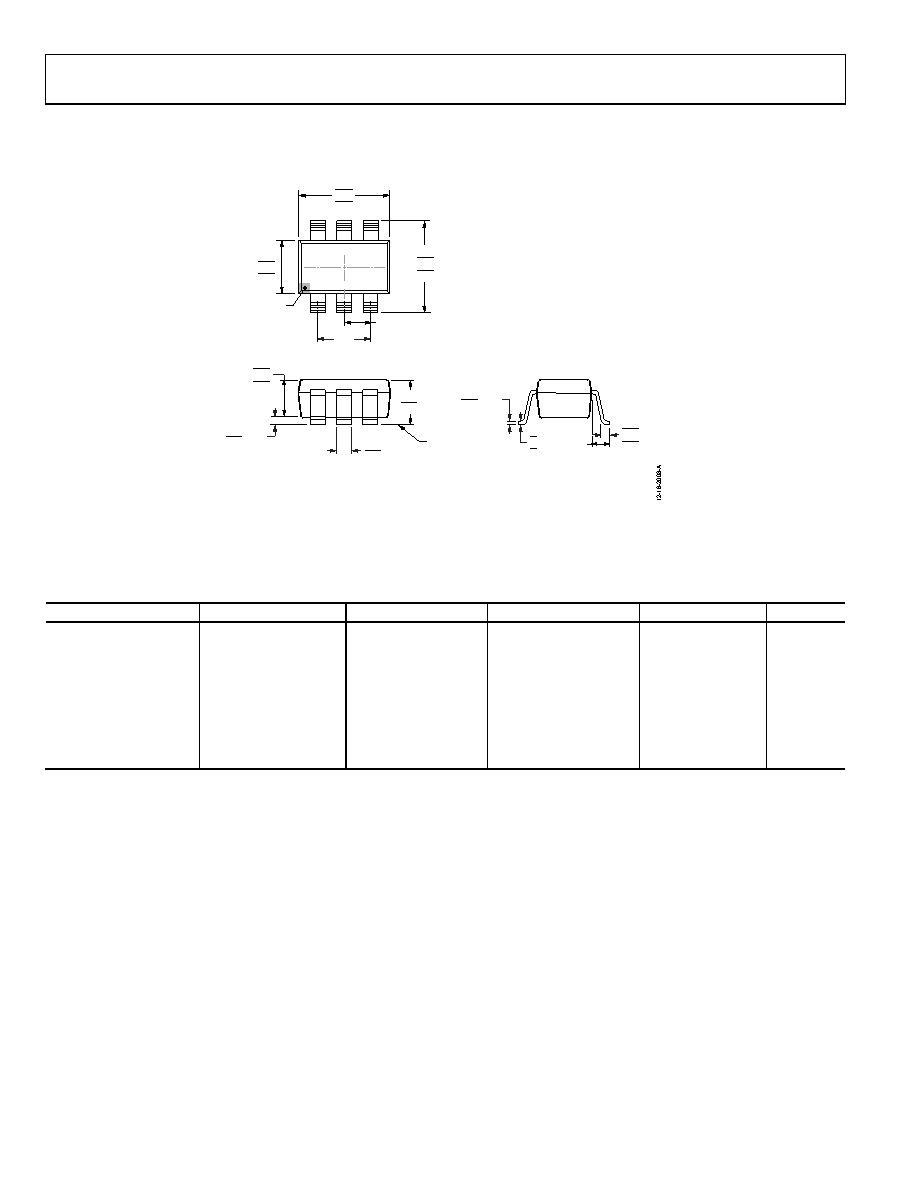

Figure 29. 6-Lead Small Outline Transistor Package [SOT-23]

RJ-6

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Voltage Output (V)

Package Description

Package Option2

Branding

ADP3330ARTZ-2.5-R7

−40°C to +85°C

2.5

6-Lead SOT-23

RJ-6

L1B

ADP3330ARTZ-2.75R7

−40°C to +85°C

2.75

6-Lead SOT-23

RJ-6

L2B

ADP3330ARTZ-2.75RL

−40°C to +85°C

2.75

6-Lead SOT-23

RJ-6

L2B

ADP3330ARTZ-2.85R7

−40°C to +85°C

2.85

6-Lead SOT-23

RJ-6

L3B

ADP3330ARTZ-3-RL7

−40°C to +85°C

3.0

6-Lead SOT-23

RJ-6

L4B

ADP3330ARTZ3.3-RL7

−40°C to +85°C

3.3

6-Lead SOT-23

RJ-6

L5B

ADP3330ARTZ-3.6-R7

−40°C to +85°C

3.6

6-Lead SOT-23

RJ-6

L6B

ADP3330ARTZ-5-RL7

−40°C to +85°C

5.0

6-Lead SOT-23

RJ-6

L8B

1

Z = RoHS Compliant Part.

2

Contact the factory for the availability of other output voltage options.

COMPLIANT TO JEDEC STANDARDS MO-178-AB

10°

4°

0°

SEATING

PLANE

1.90

BSC

0.95 BSC

0.60

BSC

6

5

1

2

3

4

3.00

2.90

2.80

3.00

2.80

2.60

1.70

1.60

1.50

1.30

1.15

0.90

0.15 MAX

0.05 MIN

1.45 MAX

0.95 MIN

0.20 MAX

0.08 MIN

0.50 MAX

0.30 MIN

0.55

0.45

0.35

PIN 1

INDICATOR

Rev. C | Page 14 of 16
