GP200MHS12
8/10
Caution: This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures.
www.dynexsemi.com

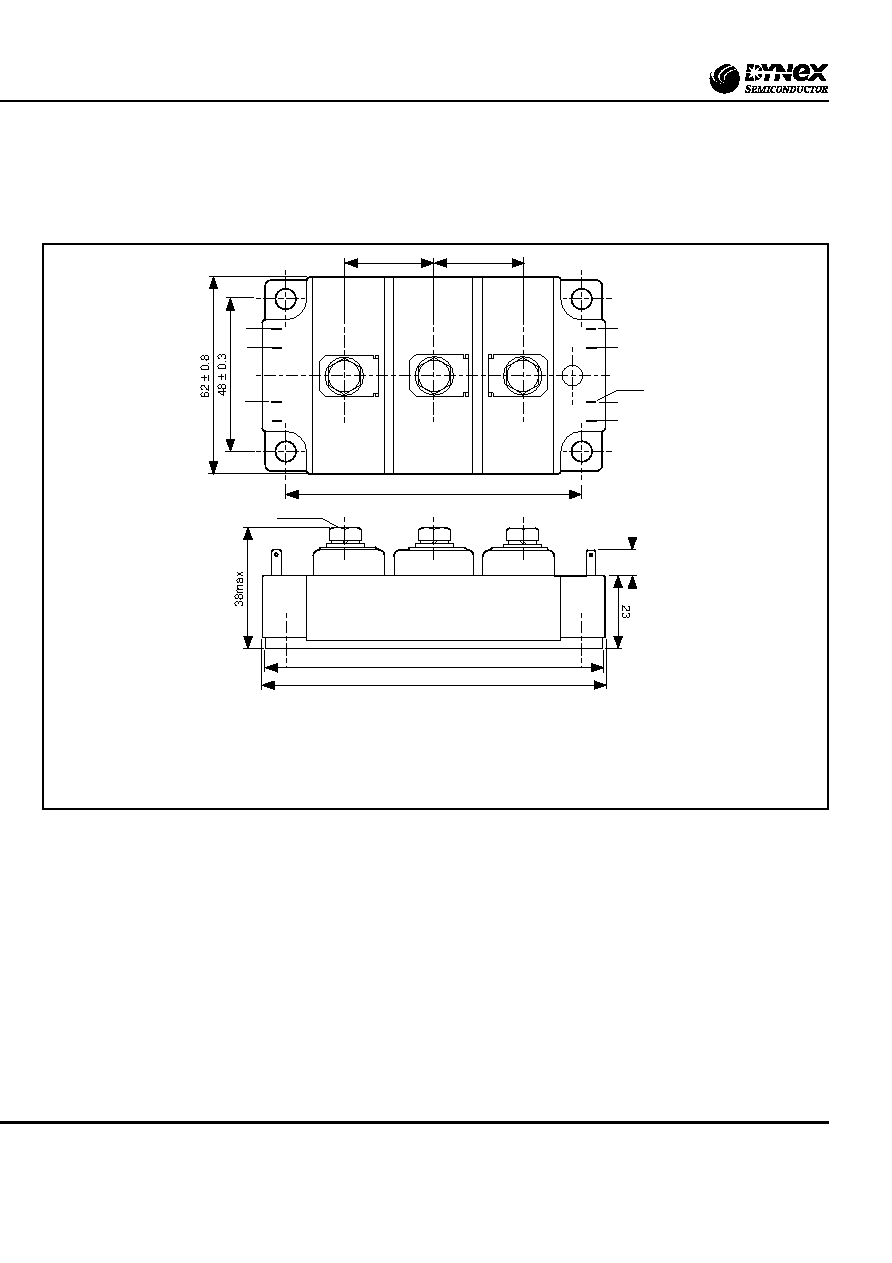

PACKAGE DETAILS
For further package information, please visit our website or contact your nearest Customer Service Centre. All dimensions in mm, unless
stated otherwise. DO NOT SCALE.
8
106
± 0.8
108
± 0.8
3x M6
93
± 0.3
1
4x Fast on
tabs
28
± 0.5
28
± 0.5
2
3
10
11
9
8
4
5
7
6
Nominal weight: 270g
Recommeded fixings for mounting: M6
Recommended mounting torque: 5Nm (44lbs.ins)
Recommended torque for electrical connections (M6): 5Nm (44lbs.ins)
Module outline type code: M
